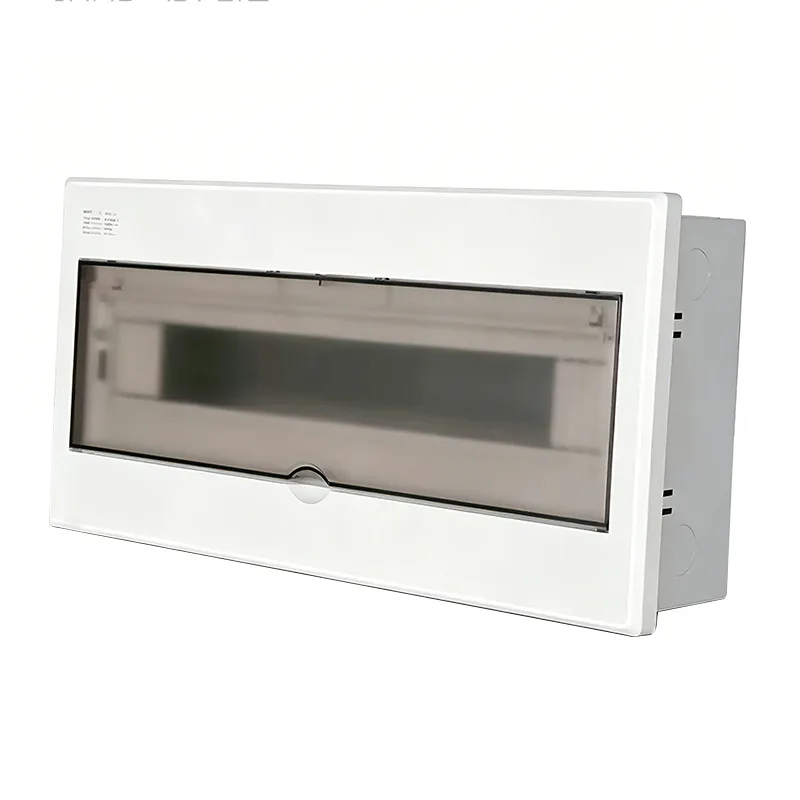

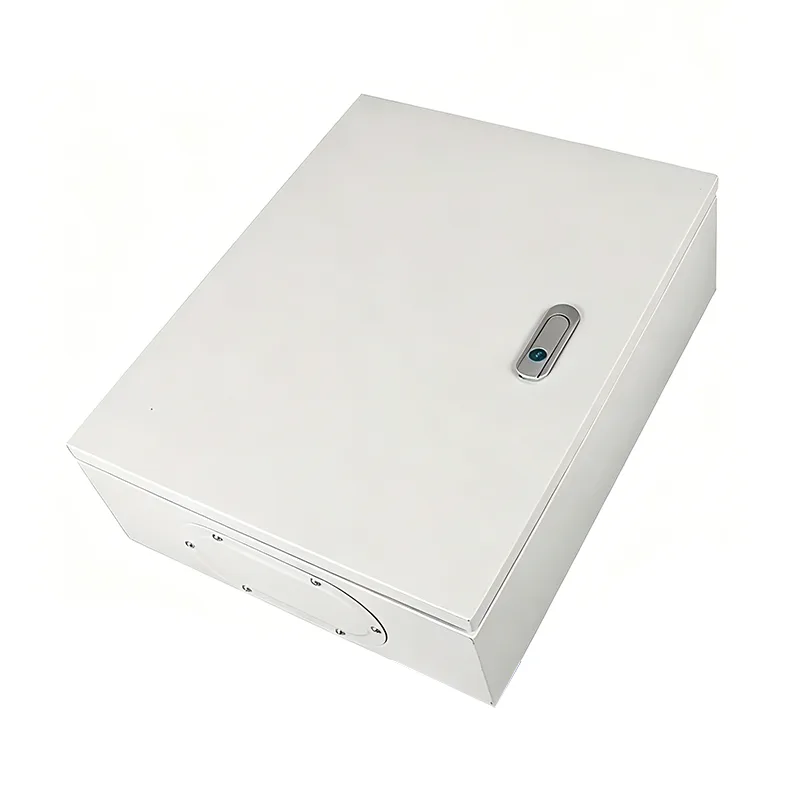

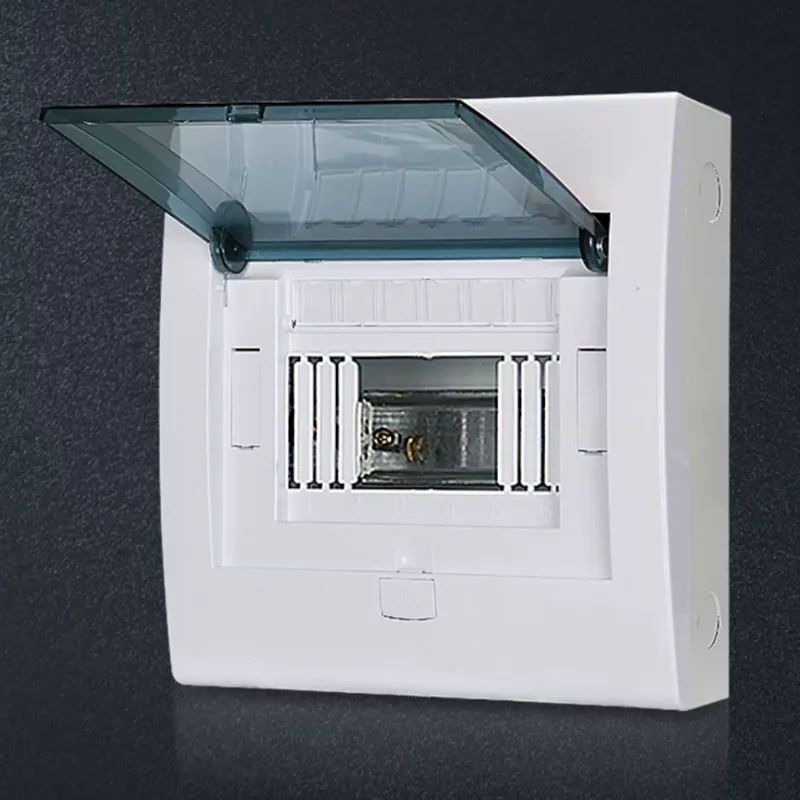

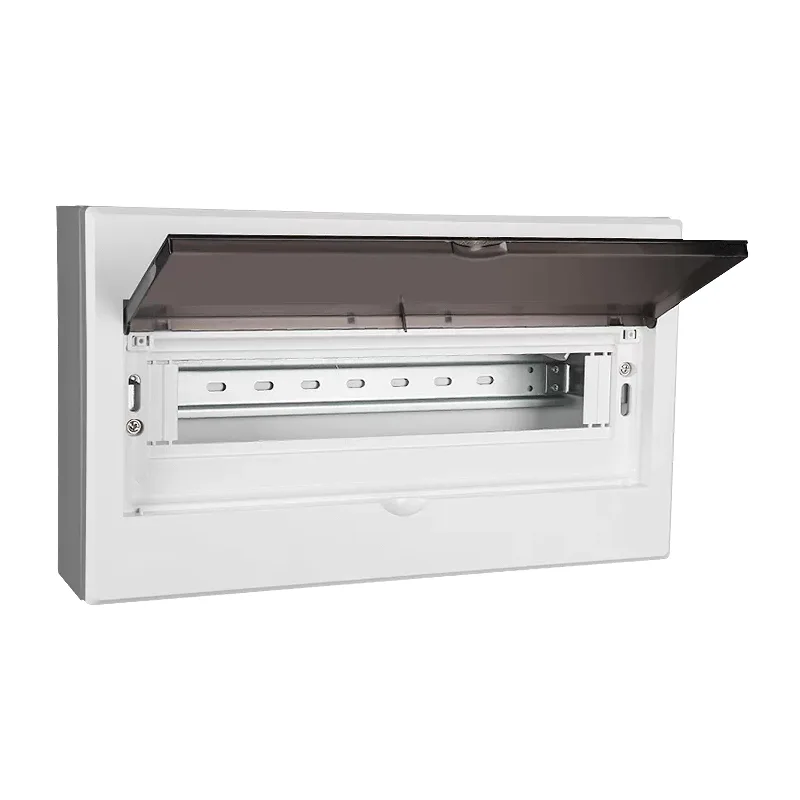

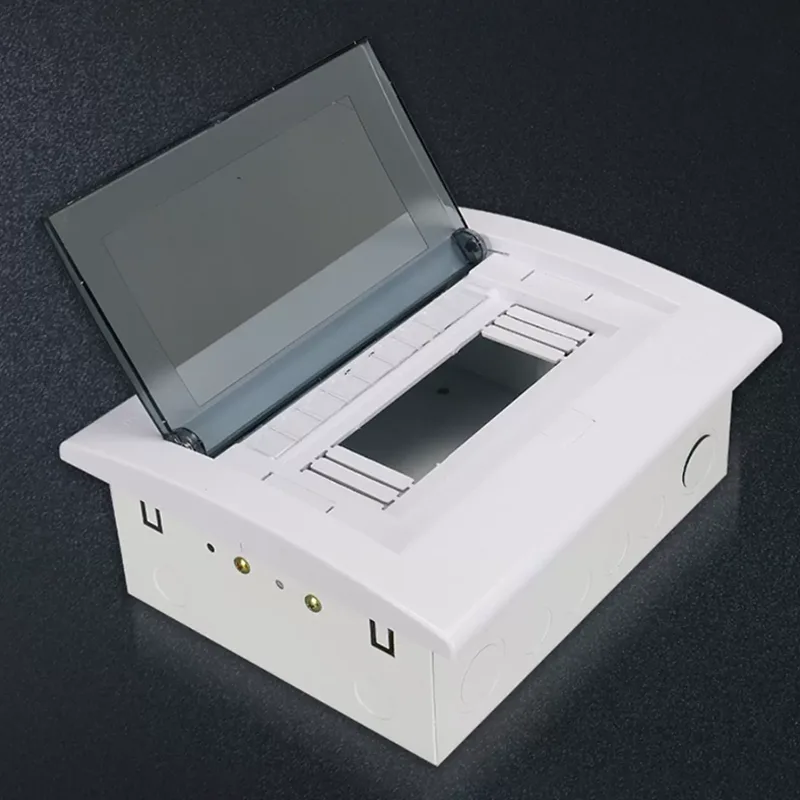

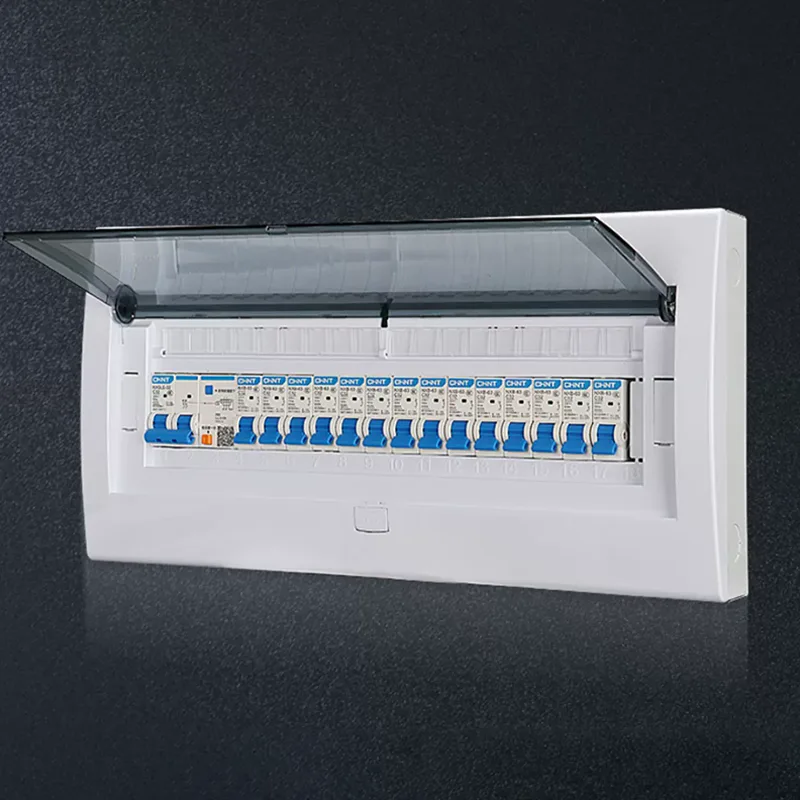

Wall-Mounted Lighting Distribution Box

Shangming is a professional manufacturer of wall-mounted lighting distribution boxes from China, with its own factory and complete production and quality inspection procedures. This distribution box distributes electrical energy from the upstream power source, providing protection, control, and management functions for lighting circuits.

Core Functions

Power Distribution: The wall-mounted lighting distribution box divides the main incoming current into multiple branch currents, supplying power to different areas.

Circuit Protection: The distribution box is equipped with miniature circuit breakers. It automatically trips in the event of a short circuit or overload, preventing fire and equipment damage.

Leakage Protection: Equipped with a leakage current device (RCD), it instantly cuts off the power supply upon detecting electric shock or leakage, ensuring personal safety.

Centralized Control: Allows operators to conveniently control the lighting of an entire floor or area from a single location.

Application Scenarios and Configuration Recommendations

Wall-mounted lighting distribution boxes are compact, flexible in installation, and offer comprehensive protection functions. We provide professional solutions for various application scenarios and recommend configurations for you.

1. Residential and Apartment Buildings

Core Requirements: Safety, economy, and compliance with mandatory regulations.

Application Location: Next to the entrance door of each unit; balcony or kitchen wall.

Configuration Features: 6–12 circuits, including independent lighting circuits for the living room, bedroom, kitchen, and bathroom;

All circuits are equipped with 30mA residual current circuit breakers as standard, complying with the "Residential Design Code"; Surge protectors are commonly included to protect LED lights from lightning strikes.

Box Selection:

Indoor dry areas → Metal powder-coated box, IP30, white/beige;

Balconies, basements → Metal powder-coated box, IP44, moisture-proof.

2. Office Buildings and Commercial Buildings

Core Requirements: Zonal control, energy-saving management, and ease of future renovation.

Application Locations: Distribution rooms or low-voltage shafts on each floor; partition walls and columns in open office areas.

Configuration Features: 12–18 circuits, divided by area; Public area lighting can be integrated into intelligent lighting systems; Separate residual current circuits are provided for damp areas such as restrooms and tea rooms.

Box Selection:

Standard Floor → Cold-rolled steel plate powder-coated box (RAL7035, IP40);

Underground Parking Lot → IP54 stainless steel box with time controller.

3. Shopping Malls, Supermarkets, and Commercial Complexes

Core Requirements: High reliability, large number of circuits, support for flexible control during business hours.

Application Locations: Distribution shafts on each floor; Back walls of shops; Dedicated boxes for accent lighting in atriums/shop windows.

Configuration Features: 18–24 circuits, supporting independent control of decorative lights, advertising light boxes, and emergency lighting; Dual power switching modules for important areas; Can integrate timers or light-controlled switches.

Enclosure Selection:

Indoor → Large-size metal enclosure (500×600×150mm);

Exterior facade/window enclosure → IP65 waterproof enclosure, resistant to rain corrosion.

4. Schools, Hospitals, and Public Buildings

Core Requirements: Personal safety first, reliable emergency response.

Application Locations: Classroom corridors, laboratories, libraries; hospital wards, outpatient halls, surgical auxiliary areas; government office buildings, libraries, gymnasiums.

Configuration Features: All areas accessible to personnel must be equipped with 30mA leakage protection;

Emergency lighting and evacuation indicator lights should have independent circuits + battery backup;

Special areas such as laboratories and pharmacies should have additional isolation transformer interfaces.

General lighting and emergency lighting must not be mixed on the same circuit.

Enclosure Selection:

Classrooms, wards → White plastic enclosure, quiet, no metallic clanging noise;

Underground garages/pump rooms → IP54 metal enclosure.

5. Industrial Plants and Warehouses

Core Requirements: Durable, dustproof, adaptable to harsh environments.

Application Locations: Workshop pillars, near equipment fences; under warehouse overhead racks; outdoor loading and unloading platforms.

Configuration Features: Fewer circuits (4–8), but higher current (16–32A/circuit); Uses industrial-grade MCB; Explosion-proof optional for chemical and painting workshops.

Enclosure Selection:

General workshops → 2.0mm cold-rolled steel plate, IP54;

Outdoor/high humidity areas → 304 stainless steel enclosure, IP65.

6. Infrastructure

Core Requirements: Waterproof, corrosion-resistant, supports automatic control.

Application Locations: Tunnel sidewall maintenance access; underground parking garage fire compartment walls; near street light control cabinets.

Configuration Features: Equipped with time controller + photosensitive switch; emergency lighting circuit with battery monitoring; 40kA surge protector added to incoming lines for induced lightning protection.

Enclosure Selection:

IP65 stainless steel enclosure with drainage holes;

Cold regions → Add heating film to prevent condensation and icing.

Our Services

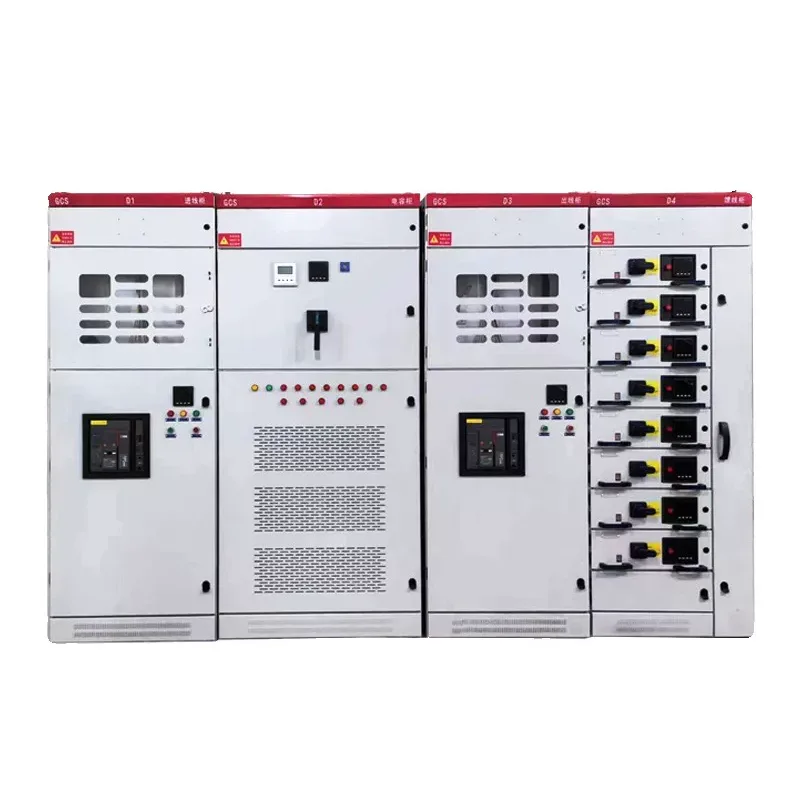

As a professional manufacturer, once you contact us, Shangming will provide one-on-one engineer support to quickly respond to your technical questions. Based on the project information and drawings you provide, and considering load characteristics, short-circuit capacity, and environmental conditions, we will accurately recommend product models such as GCK/GCS/MNS/GGJ/lighting boxes. Customization is also available.

We provide the necessary certification documents and test reports, as well as complete technical documentation, including installation manuals, wiring diagrams, component lists, maintenance guides, and cabinet drawings (DWG/PDF format).

When products leave the factory, we use export-standard packaging. The cabinet is first wrapped in EPE pearl cotton, then placed in a moisture-proof plastic bag, and finally packed into a fumigated wooden crate (compliant with ISPM 15 standards). The inside of the wooden crate is filled with foam for fixation, and the outside is reinforced with steel straps. Core components are individually packaged with anti-static materials to ensure no collision or moisture damage during transportation.
