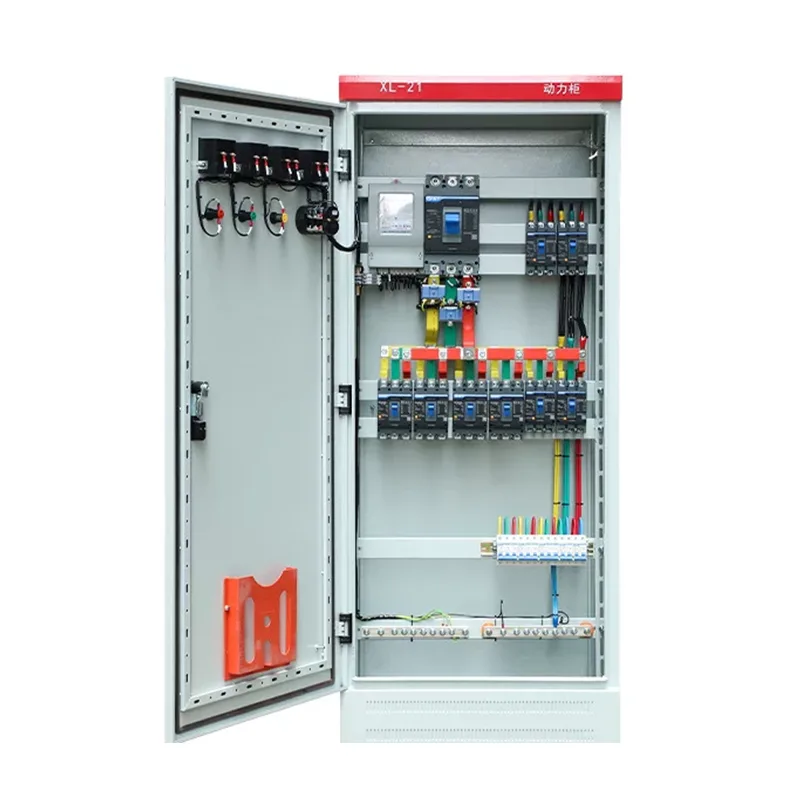

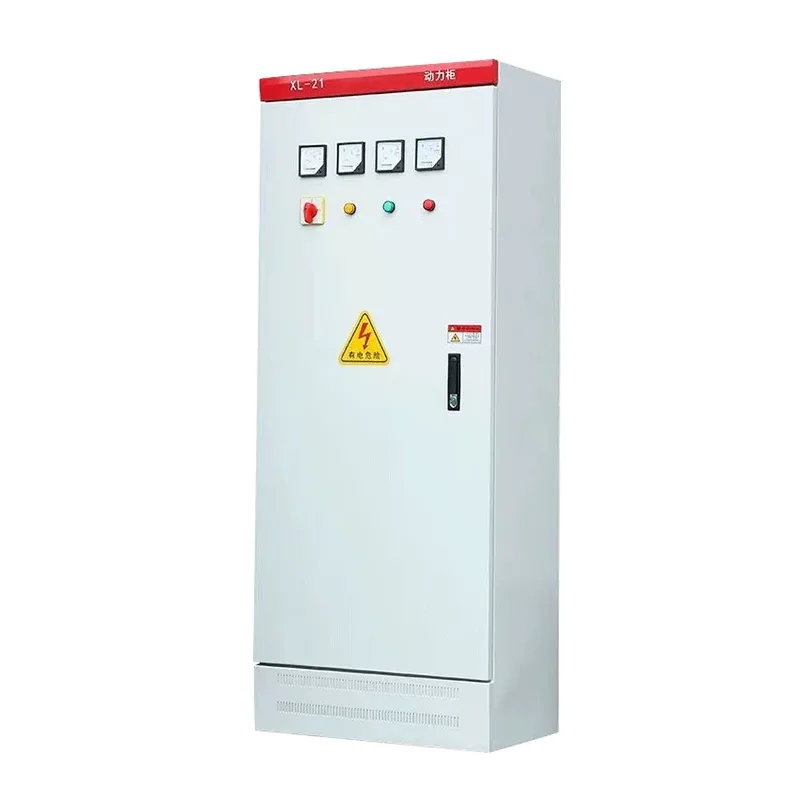

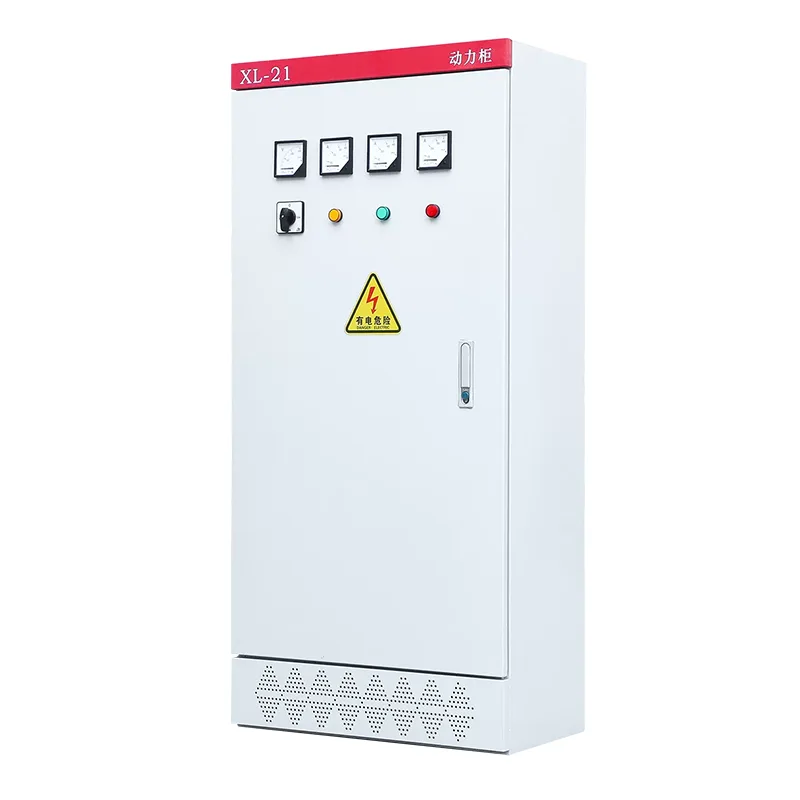

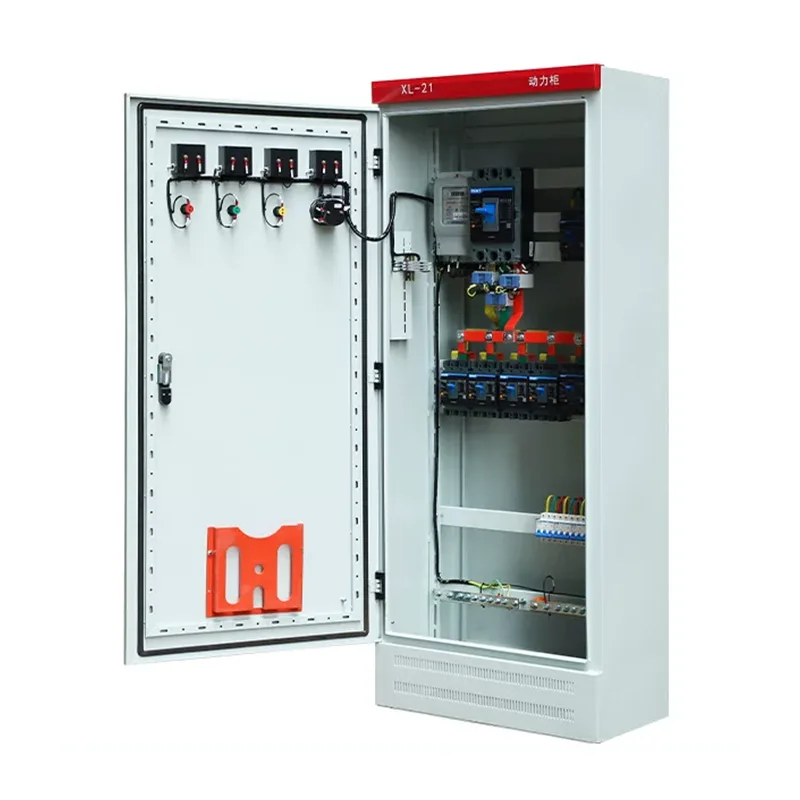

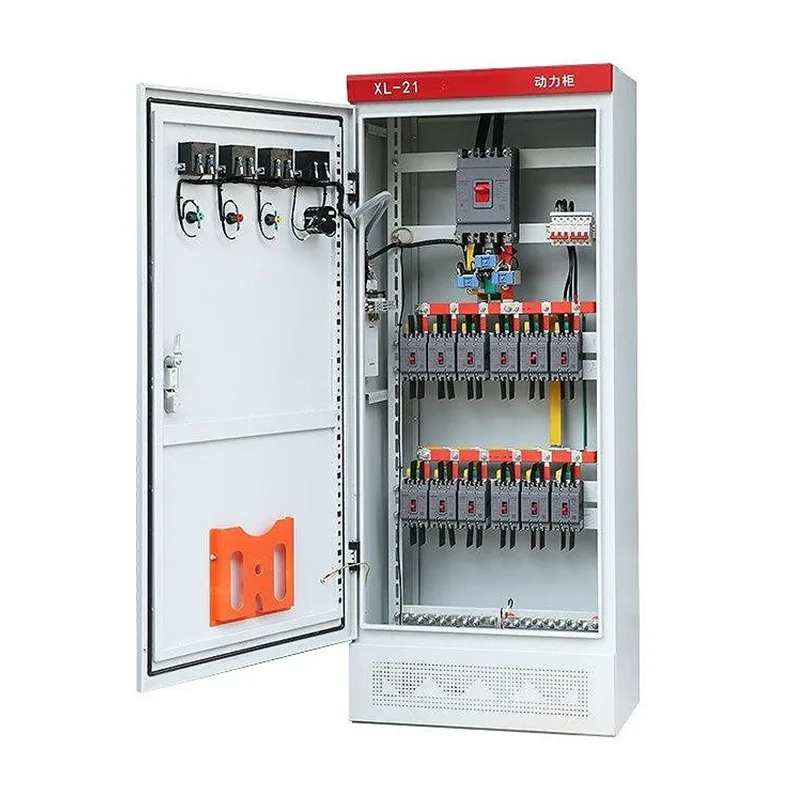

Floor-Standing Complete Set of Power Distribution Cabinets

As a supplier of Floor-Standing Complete Set of Power Distribution Cabinets, Shangming from Yueqing, Wenzhou, China can provide customized cabinet dimensions, circuit schemes and functional configurations. This product is suitable for multi-circuit, high-current power distribution needs, and through centralized management, it is convenient for unified control, inspection and maintenance.

Core Advantages

Floor-standing distribution cabinets are large, independent metal cabinets that stand on the ground. Shangming's designs are rational, and the products offer diverse advantages and ease of use.

High Capacity: Floor-standing cabinets have a rated current range of 400-6300A, far exceeding wall-mounted boxes.

High Safety: Internal safety interlocks prevent accidental entry into energized areas and prevent the disconnect switch from being operated under load, ensuring greater safety for operators.

Excellent Thermal Management: The large cabinet space, combined with a cooling fan, effectively dissipates heat generated by high current operation.

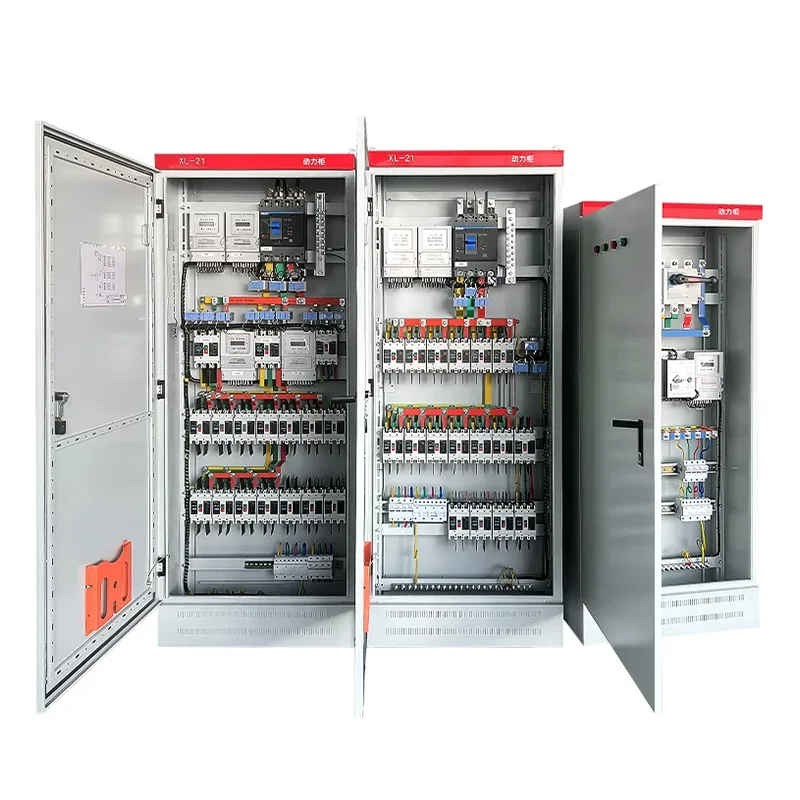

Easy Expansion: Our parallel cabinet design allows for the addition of new cabinets as power demand increases, much like building blocks.

How to Install a Floor-Standing Distribution Cabinet?

Floor-Standing Complete Set of Power Distribution Cabinets need to be installed in a power distribution room or a controlled industrial environment.

Foundation Construction: A channel steel base needs to be constructed. The channel steel should be installed horizontally above the cable trench or on a concrete platform, with a horizontal error not exceeding 1mm per meter.

Positioning and Alignment: Use a crane or forklift to move the cabinet onto the channel steel.

Alignment Sequence: Align the first cabinet first, then align each cabinet accordingly. Ensure the cabinet surfaces are flush and the gaps are even.

Fixing Connections: The cabinet and channel steel are usually connected with bolts for easy future expansion and relocation. Spot welding can also be used for fixing.

When merging cabinets, use special bolts to secure adjacent cabinets and connect the main busbar.

Cable Entry: Introduce cables from the bottom and secure them with cable brackets to prevent the weight of the cables from directly impacting the switch terminals.

Shangming provides installation manuals, wiring diagrams, component lists, maintenance guides, and cabinet drawings. You can also contact us for remote technical support, or we can arrange for an engineer to handle the on-site process.

Our Customization Services

As a professional factory, Shangming's core advantage lies in customization. Please work with us to confirm the specific customized floor-standing complete power distribution cabinet solution based on your needs.

I. Cabinet Structure and Dimension Customization

We can customize the cabinet height, width, and depth according to the site space, supporting single-door, double-door, or multi-unit cabinet structures. Base height and cable entry/exit methods are optional, adapting to different load-bearing and installation conditions.

II. Material and Surface Treatment Customization

Material options: Carbon steel, galvanized steel, stainless steel

Surface treatments: Powder coating, baking paint, anti-corrosion coating

If needed, we can provide specialized protection designs for outdoor, humid, or corrosive environments.

III. Electrical Configuration and Function Customization

We need to customize the number of circuits and current rating according to the project's load type, configuring main circuit breakers, branch circuit breakers, leakage protection, etc.

Supports power, lighting, or mixed power distribution solutions, and can integrate control, monitoring, or reserve expansion interfaces.

IV. Protection Rating and Operating Environment Customization

Protection ratings are available in IP54, IP65, etc., and waterproof, dustproof, and condensation-proof structures can be added.

Our floor-standing cabinets, due to their customized solutions, are suitable for indoor power distribution rooms, outdoor applications, municipal or industrial environments, depending on the specific circumstances.

V. Standards and Certification Compatibility

Compliant with IEC, ANSI, BS, DIN, AS/NZS, and other standards. Inform us of your target market before placing an order, and we can provide products and certification documents that meet local standards.

We support the certification configurations required for export projects, ensuring smooth project acceptance and long-term compliant operation.

What Happens if There Are After-Sales Issues?

As the responsible manufacturer, Shangming provides lifetime technical support. For any after-sales problems, we will respond promptly and handle them according to the following steps:

Customers report problems, providing photos/videos of the malfunction and the order number → Technical team responds within 4 hours → Remote diagnostics, free guidance on adjusting parameters or replacing small components, and free replacement parts within the warranty period → If the problem cannot be resolved, an engineer will be arranged for on-site handling or the product will be returned for repair/replacement, with all costs borne by us within the warranty period.

In case of emergencies, we can prioritize providing replacement products to minimize losses.
