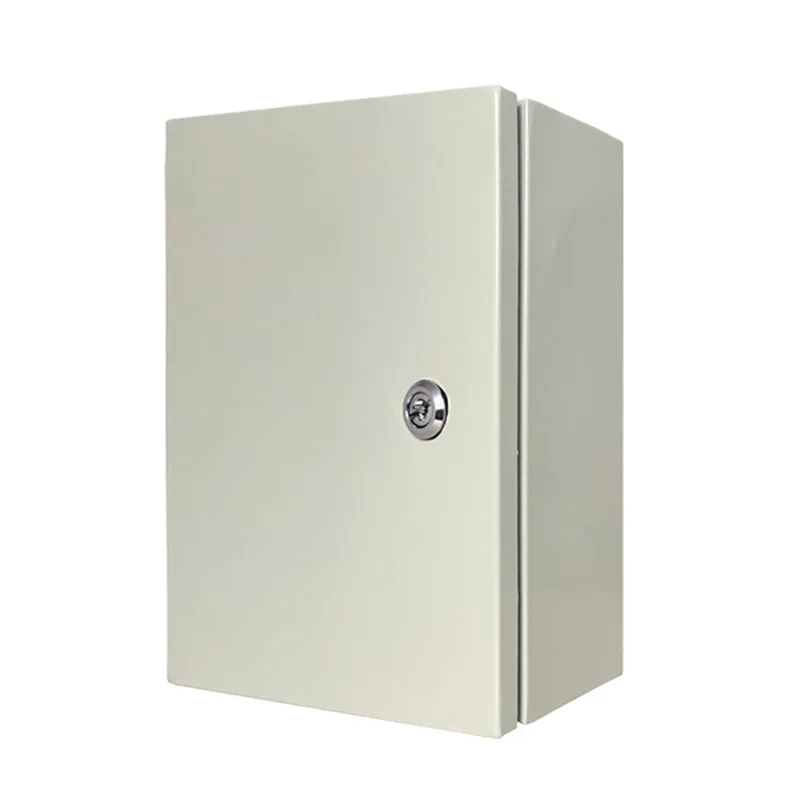

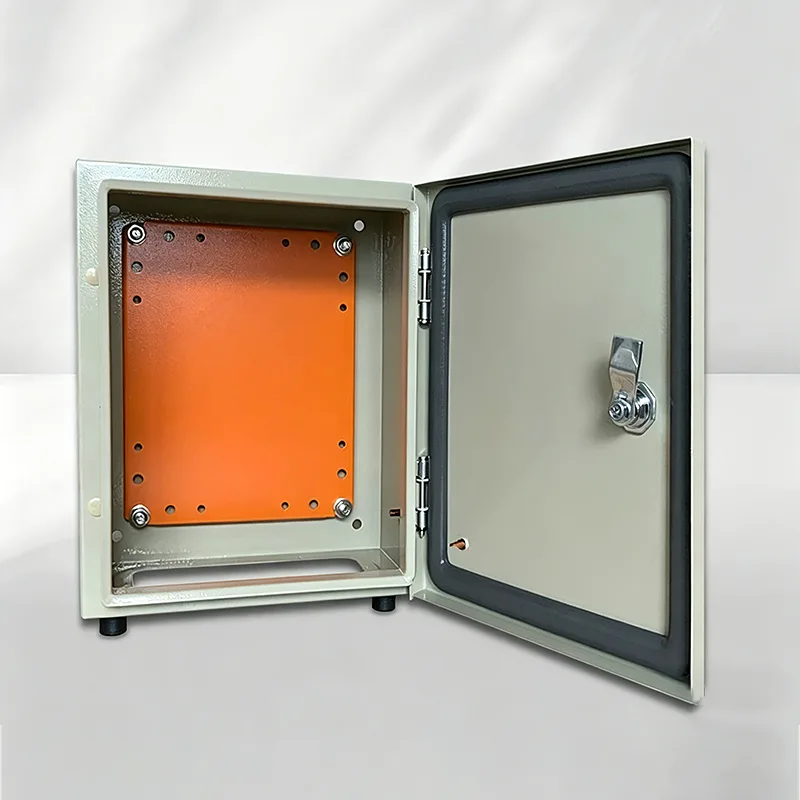

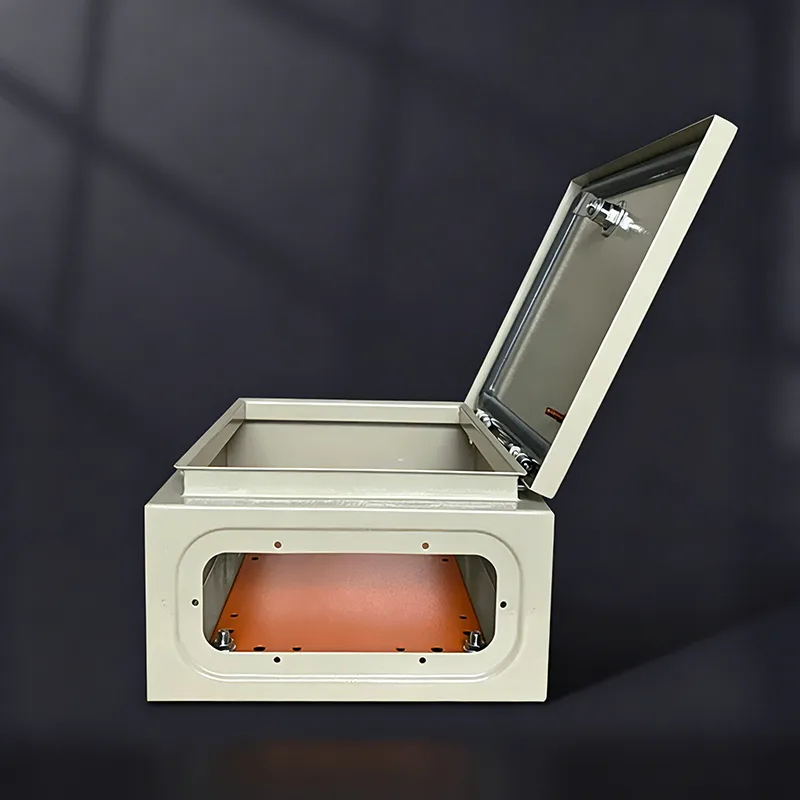

Carbon Steel Distribution Box Enclosure

Carbon steel distribution box enclosures are one of the products Shangming can provide. With over 10 years of manufacturing experience, we are a professional factory capable of handling wholesale or customized needs.=

This distribution box enclosure is made of high-quality cold-rolled steel sheet, formed in one piece through CNC punching and bending. To further extend its service life, the surface is treated with electrostatic powder coating or anti-corrosion coating, ensuring reliable quality and high cost-effectiveness.

Material Characteristics

Carbon steel distribution box enclosures are currently the most widely used basic protective enclosures in electrical engineering worldwide. For the electrical field, carbon steel enclosures offer excellent cost-effectiveness and are sufficient for most conventional environments.

This product uses high-quality cold-rolled steel sheet as its base material. Compared to hot-rolled sheet, cold-rolled sheet has a smoother surface, higher mechanical strength, and more uniform thickness. However, simply choosing the material is not enough, as carbon steel is prone to rust. Therefore, we apply electrostatic powder coating to the surface, which not only improves aesthetics but also provides basic anti-oxidation and insulation protection.

Through high-precision CNC bending and sealing strips, the carbon steel distribution box enclosure achieves an IP54 waterproof and dustproof rating, suitable for both indoor and ordinary outdoor environments.

Installation and Maintenance Guidelines

I. Installation Points

1. Choose a Suitable Installation Environment

Carbon steel distribution box enclosures are more suitable for indoor or dry environments. They are not recommended for humid or dusty areas. Before installation, the appropriate IP protection rating must be determined to avoid long-term exposure to highly corrosive environments.

2. Fixing and Load-Bearing Capacity Confirmation

As the manufacturer of distribution box enclosures, Shangming recommends confirming the load-bearing capacity of the wall or floor before installation. Use matching expansion bolts or brackets for fixing, ensuring the enclosure is level and stable to prevent vibration or loosening from affecting internal electrical operation.

3. Grounding Protection

This is very important. Reliable grounding must be performed according to local electrical codes to prevent the risk of leakage.

4. Reasonable Wiring and Heat Dissipation

Sufficient space should be reserved for wiring during installation to avoid overly dense internal wiring affecting heat dissipation. If necessary for your operating environment, ventilation holes or heat dissipation devices can be added.

II. Maintenance Points

1. Regularly Inspect the Surface Coating

Carbon steel enclosures rely on powder coating or anti-corrosion coatings for rust prevention. Therefore, it is necessary to regularly check for scratches or peeling. Damaged areas should be repaired with paint promptly.

2. Keep the enclosure dry and clean.

Even with rust and corrosion prevention treatments, to extend the product's lifespan, it's still necessary to avoid prolonged water accumulation or dampness. Regularly clean dust and oil stains to prevent accelerated corrosion.

3. Fastener Inspection

Regularly check door locks, hinges, and mounting screws for looseness. This step is crucial for sealing and structural stability.

4. Rust Prevention Maintenance

If you live in a high-humidity area, in addition to checking the surface coating, it is recommended to perform more specialized rust prevention maintenance regularly.

How to Customize a Carbon Steel Distribution Box Enclosure?

1. Define Technical Parameters

We need you to provide the following information:

● External Dimensions (H×W×D)

● Material Thickness

● Installation Method (Wall-mounted/Floor-standing)

● Door Structure (Single Door/Double Door/Transparent Window)

● Protection Rating Requirements

● Surface Treatment (Powder Coating, Galvanizing, etc.)

● Internal Mounting Plate or Component Layout Requirements

If you can provide drawings, that would be best. If not, we can assist with structural design.

2. Technical Communication and Solution Confirmation

After determining the general requirements, Shangming's professional engineering team will confirm the technical solution based on the usage environment and load-bearing requirements, optimize structural strength, assess heat dissipation and wiring space, confirm openings and installation details, and provide you with technical advice and a quotation after overall consideration.

After confirmation, we will make a sample and provide it for your final confirmation.

3. Mass Production and Quality Control

Once the solution and sample are confirmed to be correct, our factory will arrange mass production. In addition to the expertise in materials and craftsmanship, we also implement multiple quality inspections, including structural and visual checks before shipment.

Standard customized lead time is approximately 20–30 days; large-volume projects can be scheduled for earlier production.
