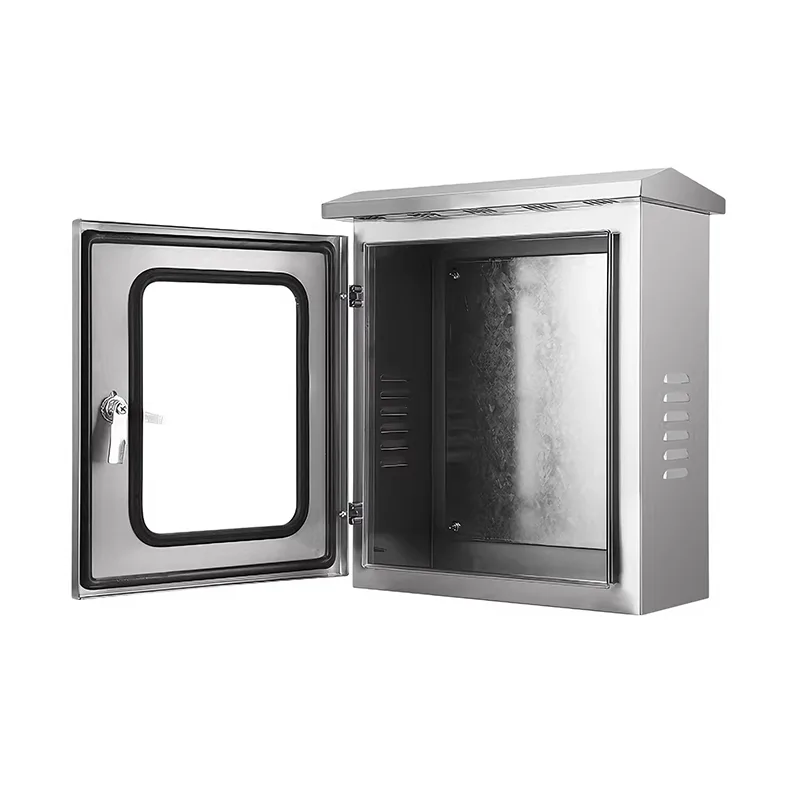

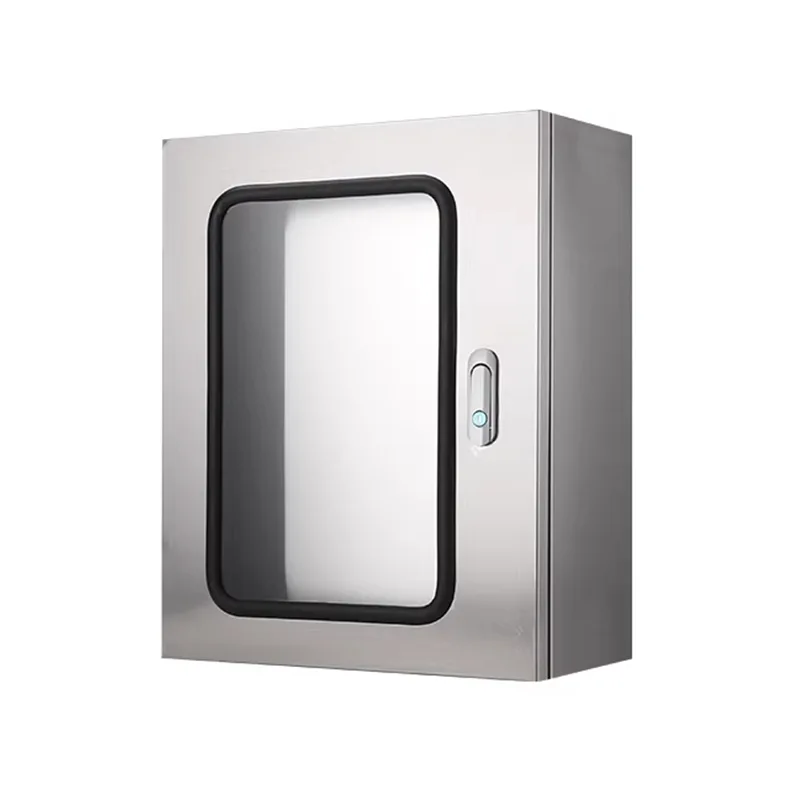

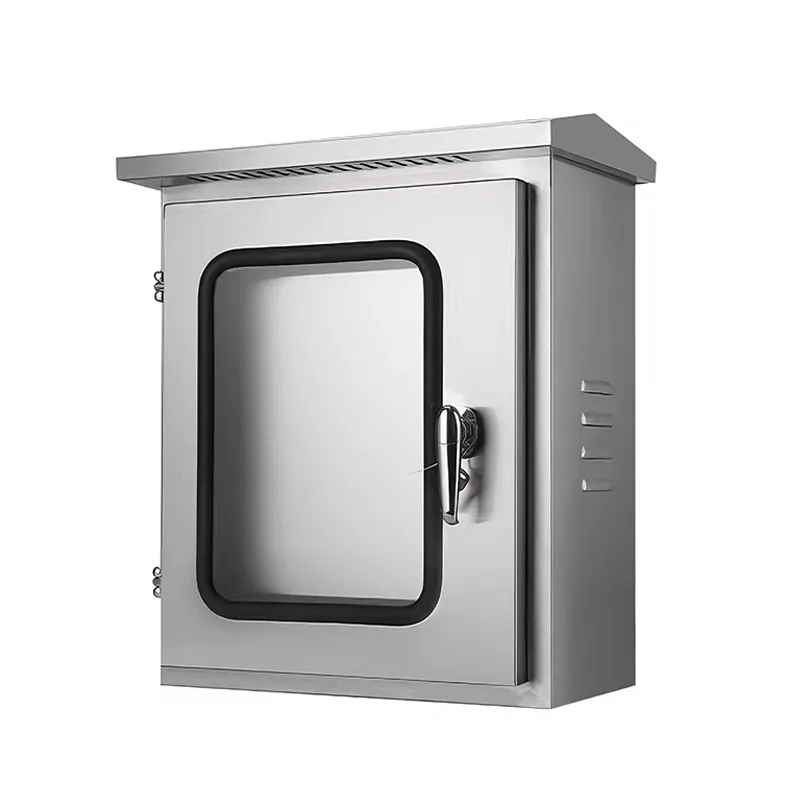

IP65 Outdoor Distribution Box Enclosure

For advanced and durable IP65 outdoor distribution box enclosures, consider Chinese supplier Shangming. Located in Yueqing, Wenzhou, in the core area of China's national-level advanced electrical industry manufacturing cluster, we have extensive experience and can provide effective protective products with various materials and customizable sizes.

What Does IP65 Mean?

In the field of electrical engineering, IP65 is an internationally recognized protection rating standard used to measure the physical protection capability of an electrical distribution box enclosure against solid foreign objects and liquids.

The two digits following IP represent different dimensions of protection:

First digit: 6 – Complete dust protection

Meaning: The highest level of solid object protection.

Performance: Completely prevents dust from entering the enclosure, avoiding poor contact or short circuits caused by dust.

Second digit: 5 – Water jet protection

Meaning: Protects against low-pressure water jets from any direction.

Performance: Using a nozzle with an outer diameter of 6.3mm, water can be sprayed onto the enclosure from all directions (water flow rate approximately 12.5 L/min), and the enclosure should be able to ensure that no water enters the interior or that the amount of water entering is insufficient to affect the normal operation of the equipment.

Practical application: Equivalent to withstanding heavy rain or the washing of ordinary water pipes.

Why Are Shangming Electric's IP65 Enclosures More Reliable?

In actual manufacturing, achieving IP65 isn't just about making a metal box; it requires precise manufacturing processes:

Fully Automated Dispensing Technology: We don't use easily detachable manual rubber strips; instead, we employ fully automated polyurethane foam sealing. This sealing strip is integrally molded with the door panel, boasting extremely strong resilience to ensure a tight seal when the door is closed.

Waterproof Groove Structure: The enclosure opening is designed with outward-folded water-guiding grooves. When rainwater falls into the door seams, it flows away along the grooves instead of accumulating on the sealing strip.

Weather-Resistant Coating: Outdoor electrostatic spraying ensures the paint surface won't crack under UV exposure, thus protecting the substrate from rust and maintaining the protection level for a long time.

Recommended Application Scenarios

1. Industrial Manufacturing and Energy

This is the field with the highest protection requirements. IP65 outdoor distribution box enclosures made of stainless steel are very popular in this field, and we have already cooperated with many clients.

Oil and Chemical Industry: Resisting highly corrosive gases and volatiles, ensuring the electrical safety of control systems.

Food and Beverage Processing: Meeting high-pressure washing and stringent hygiene standards to prevent rust contamination of production lines.

New Energy Projects: Suitable for photovoltaic power station combiner boxes, internal control of wind turbine towers, and charging pile distribution hubs.

2. Municipal Engineering and Transportation Infrastructure

These applications require higher requirements for the long-term durability and all-weather protection of the distribution box enclosures. They need to be used continuously for extended periods and are not suitable for frequent maintenance or replacement.

Rail Transit: For subway station concourses, tunnel lighting, and signal control systems, galvanized steel or stainless steel with stronger rust resistance is recommended to cope with underground moisture.

Municipal Power: Urban street light control, landscape lighting distribution, and monitoring system hubs.

Water Treatment Systems: Wastewater treatment plants and tap water purification facilities, designed to withstand high humidity and hydrogen sulfide corrosion environments.

3. Commercial Real Estate and Public Buildings

Shangming's products are tailored to this sector, offering high cost-effectiveness, efficient space utilization, safety certifications, and integration with the building environment.

High-end Office Buildings and Shopping Malls: Floor distribution boxes, low-voltage control boxes, and power distribution cabinets.

Medical and Educational Institutions: Power distribution for precision equipment in hospitals and safe power control for school laboratories.

Data Centers: Precision power distribution cabinets and UPS enclosures within computer rooms.

4. Real Estate and Residential Buildings

Compared to commercial buildings, residential buildings place greater emphasis on cost-effectiveness, ease of installation, and standardized specifications.

Residential Power Distribution: Standardized base boxes and embedded distribution boxes.

Property Public Facilities: Power cabinets for residential elevators, parking lot lighting control, and power distribution for secondary water supply pump rooms.

5. Construction Sites and Temporary Projects

During the customization process, you can communicate with our technical team to specifically determine the product's portability, high protection level, and operational safety to adapt to different working conditions.

Level 3 Mobile Construction Site Box: Designed specifically for complex and changing construction environments, it features rainproof and impact-resistant functions.

Industrial Socket Maintenance Box: Provides a temporary safe power access solution for large machinery.

6. Special Customized Scenarios

Non-standard Machinery Support: Custom-designed control cabinets and operating consoles for export machinery and equipment. Customization is available based on provided drawings.

Overseas Export Trade: Shangming welcomes global buyers to contact us and choose us as a supplier. Our products feature customized shells that conform to mainstream global standards and can be matched with different countries' voltages and installation habits.
