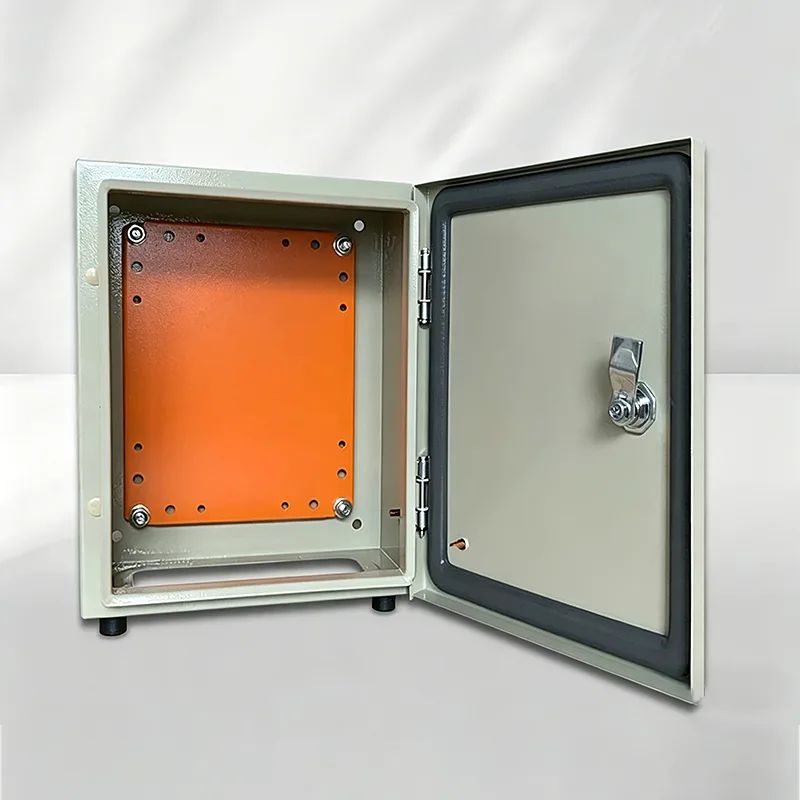

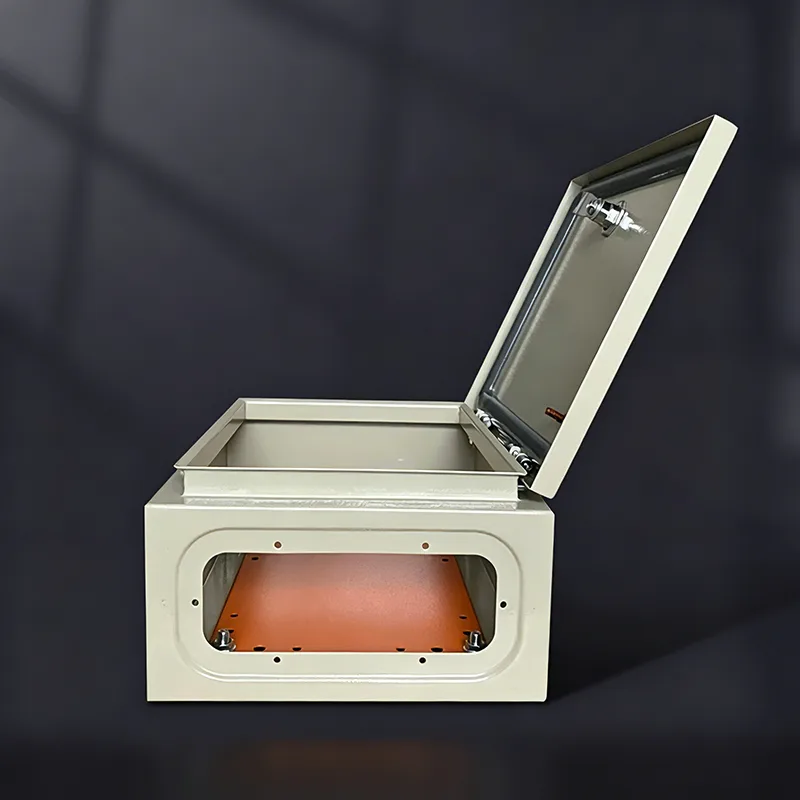

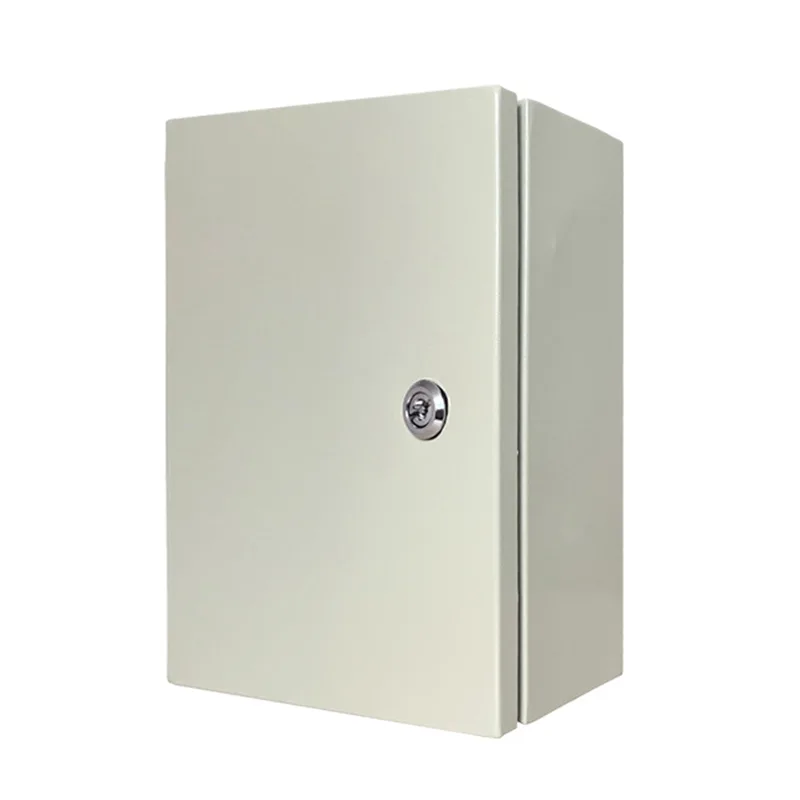

Galvanized Steel Distribution Box Enclosure

Galvanized steel distribution box enclosures are one of the products that Shangming Factory can provide. In addition, you can also choose enclosures made of carbon steel, stainless steel, and other materials. Currently, we have successfully cooperated with customers in more than 50 countries and regions worldwide, and we welcome new and old customers to establish long-term partnerships with us.

Core Product Features

1. Dual Protection

Principle: Galvanized steel offers dual protection through both physical barriers and electrochemical processes. A zinc layer forms on the surface by immersing the steel in molten zinc or through electrolysis.

This zinc layer acts not only as a physical barrier but also provides sacrificial protection. When the outer shell is scratched and the steel is exposed, the zinc preferentially undergoes a chemical reaction, protecting the internal steel from rusting.

Ordinary powder-coated carbon steel cannot match this level of protection.

2. Cost-Effectiveness

Advantages: Galvanized steel offers significantly better corrosion resistance than ordinary cold-rolled steel sheets, but at a much lower price than stainless steel, making it a more balanced choice.

Depending on your project plan, if you have a limited budget but a relatively humid environment, we recommend choosing a galvanized steel outer shell.

3. Coating Adhesion

The galvanized layer not only prevents rust but also serves as a suitable base for powder coating. Electrostatic powder coating on galvanized steel results in a stronger paint film than on ordinary iron sheets, preventing peeling or flaking even in harsh weather conditions.

4. Structural Strength

Sufficient structural strength is crucial for the enclosure of the distribution box. Our products maintain the high mechanical hardness of carbon steel, and compared to some stainless steels which are prone to deformation during the processing of large enclosures, galvanized steel offers better structural stability when manufacturing large floor-standing distribution cabinets.

Carbon Steel vs. Stainless Steel vs. Galvanized Steel:

A Comparison of Materials Used in Electrical Distribution Boxes

Main Application Scenarios

1. Indoor Underground Spaces and Humid Environments

Underground spaces have poor air circulation, and humidity often exceeds 70%. Ordinary carbon steel powder-coated boxes are prone to rusting once scratched, while the sacrificial protection of galvanized coatings effectively prevents rusting.

Besides considering the basic environmental characteristics, secondary power distribution in underground transportation hubs also requires long-term stable corrosion resistance, while cost control is also important. Galvanized steel is the standard configuration.

Common applications: Underground parking garages and civil defense projects, subway station concourses and tunnel auxiliary rooms, etc.

2. Municipal Utilities and Outdoor Slightly Corroded Areas

Power distribution boxes located by roads need to withstand rain and moisture. Galvanized steel sheets combined with outdoor powder coating provide a rust-proof lifespan of over 10 years, maintaining structural strength and durability in various weather conditions.

Common applications: Urban street light control boxes, traffic signal control boxes.

3. Residential Real Estate and Commercial Buildings

Although indoors, due to the long construction period, the boxes cannot be completely avoided from being exposed to humid air during the unfinished stage. Galvanized steel ensures the enclosure remains bright and new upon handover, enhancing the project's perceived quality.

Besides residential and office buildings, using galvanized steel as the cabinet frame for power distribution within factories significantly improves the overall cabinet's corrosion resistance.

Common applications: Power/weak current shafts, power distribution cabinets (XL-21/GGD).

4. Industrial Plants

In industrial environments without highly corrosive chemicals, galvanized steel casings resist oxidation from industrial coolants or atmospheric moisture. For highly corrosive environments, products with further enhanced protection, such as stainless steel models, should be considered; Shangming also offers such products.

Additionally, Galvanized Steel Distribution Box Enclosures are highly recommended for modern greenhouses and automated farms, where humidity is high and gases like ammonia are present.

Common applications: Machining and assembly workshops, agricultural facilities.

5. Solar Energy and New Energy Support

For example, in indoor distributed photovoltaic projects, galvanized steel casings can provide robust physical protection and long-lasting rust prevention for core components in applications such as photovoltaic inverter wall-mounted boxes.
