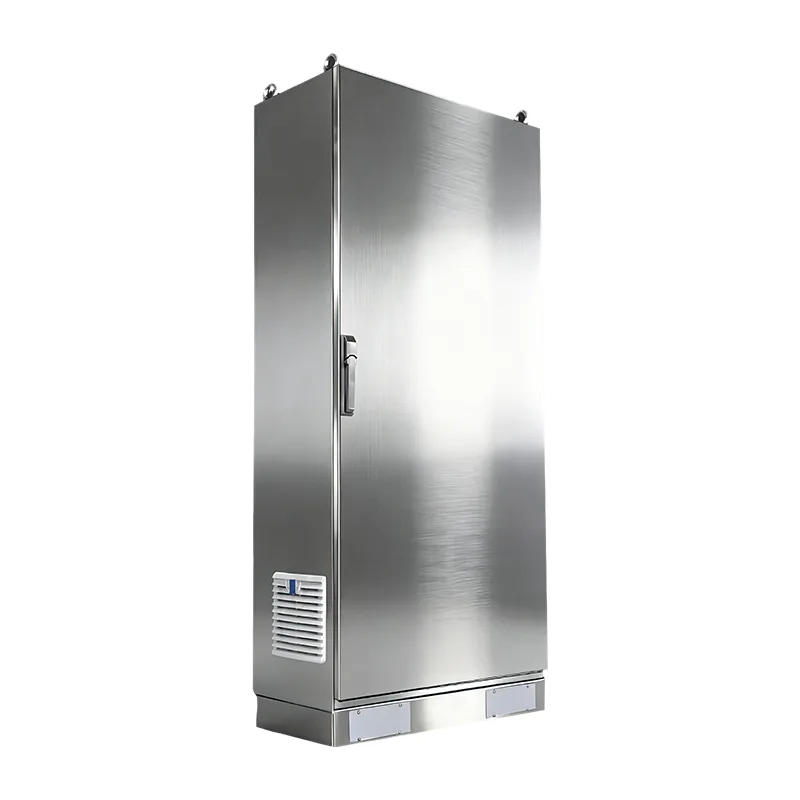

ES Stainless Steel Freestanding Control Cabinet

ES Stainless Steel Freestanding Control Cabinets are suitable for use in harsh environments. As a professional factory, Shangming uses stainless steel to manufacture these cabinets, which can be installed independently on the floor. They are suitable for high humidity, strong corrosion, dust, outdoor environments, or environments with high hygiene requirements. They are more effective for industrial automation control than simply power distribution.

Send Inquiry

Product Description

Choosing Shangming as your supplier means choosing reliable ES Stainless Steel Freestanding Control Cabinets—high-performance, easy to maintain, and with a long service life. We are ISO 9001 certified, and hold CE, CQC, and other relevant product certifications, providing one-stop power distribution cabinet solutions.

Product Features

1. Integrated Structure

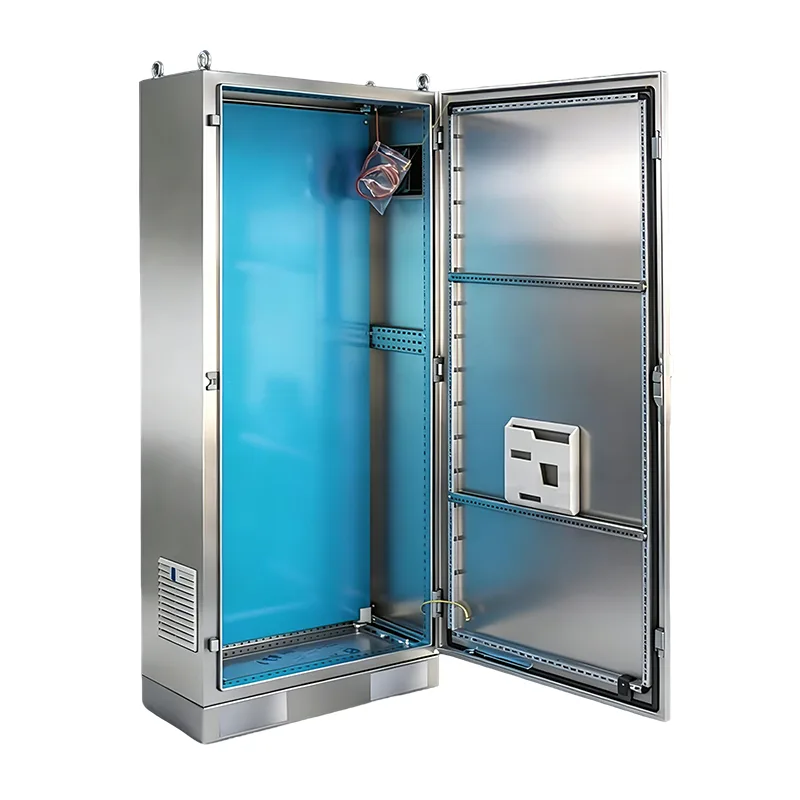

Unlike modular cabinets, the ES stainless steel floor-standing control cabinet utilizes a five-sided integrated welding process. The side panels, top panel, and bottom panel are continuously welded together to form a sturdy steel box capable of withstanding physical impacts and static loads from heavy components.

Furthermore, the meticulous welding process at Shangming factory reduces seams, preventing dust and moisture infiltration.

2. Corrosion Resistance

Depending on your specific needs, the ES cabinet offers a choice of materials, with high-quality SUS304 stainless steel as standard, suitable for environments with strong acids, alkalis, or high salt spray.

The surface treatment is a fine brushed finish, providing a premium look and preventing dirt accumulation.

3. High Protection Rating

The product boasts an IP55 protection rating. The inner door panel uses CNC automatic dispensing technology, and the polyurethane sealing strip fits tightly to the cabinet edges, maintaining elasticity even after prolonged opening and closing, ensuring effective long-term sealing.

Difference Between ES Cabinets and PS Cabinets

	ES Stainless Steel Freestanding Control Cabinet	PS Combination Distribution Cabinet
Main purpose	Resistant to harsh external environments, corrosion-resistant, waterproof, dustproof, and UV-resistant.	Integrating internal functional logic, power distribution + control + monitoring are integrated.
Materials and Structure	304 stainless steel, fully welded IP54-IP66 high sealing rating floor-mounted, independent installation	Cold-rolled steel sheet, galvanized sheet, 304 stainless steel IP30-IP54 (indoor) Can be wall-mounted or floor-standing
Typical application scenarios	Seaside/Ship/Chemical Plant Food and Pharmaceutical Cleanrooms Outdoor Pumping Stations, Photovoltaic Power Stations Areas Requiring High-Pressure Water Washing	Building Automation (BA) System Small Production Line Control Station in Factory Basement Equipment Room Automation Unit Requiring PLC + Integrated Power Distribution
Internal configuration focus	Universal mounting platform: DIN rail, backplate, grounding bar	Pre-integrated control system: Includes complete circuits such as circuit breakers, contactors, PLCs, relays, and communication modules.
Protection level	IP54/IP65/IP66	IP30-IP54

Technical Parameters

Material	SUS304 (other material models are optional)
Surface treatment	Wire drawing, installation version is galvanized
Protection level	IP55 (pressGB4205-1993)
Standard Configuration	Front door, back panel, installation panel, side panel cabinet, door lock, sealing strip
Steel plate thickness	Frame: Five fold profile 1.5mm Door panel: 2.0mm Back panel: 1.5mm Installation plate: 2.5mm

Size and Specification Table

Specifications and Dimensions			Width								Height								Depth						Installation board
Width	Height	Depth	B1	B2	B3	B5	B6	B7	B8	B9	H1	H2	H3	H5	H6	H7	H8	H9	T1	T2	T3	T4	T5	T6	F	G
600	1600	400	600	592	510	470	454	474	535	400	1600	1575	1512	1535	1450	1430	1400	795	400	265	200	350	325	349	498	1496
600	1600	500	600	592	510	470	453	474	535	400	1600	1575	1512	1535	1450	1430	1400	795	500	365	300	450	425	449	498	1496
600	1800	400	600	592	510	470	453	474	535	400	1800	1775	1712	1735	1650	1630	1600I	895	400	265	200I	350	325	349	498	1696
600	1800	500	600	592	510	470	453	474	535	400	1800	1775	1712	1735	1650	1630	1600	895	500	365	300	450	425	449	498	1696
800	2000	500	600I	592	510	470	453	474	535	400	2000	1975	1912	1935	1850	1830	1800	995	500	365	300	450	425	449	498	1896
800	1600	500	800	792	710	670	653	674	735	600	1600	1575	1512	1535	1450	1430	1400	795	500	365	300	450	425	449	698	1496
800	1800	400	800	792	710	670	653	674	735	600	1800	1775	1712	1735	1650	1630	1600	895	400	265	200	350	325	349	698	1696
800	1800	500	800	792	710	670	653	674	735	600	1800	1775	1712	1735	1650	1630	1600	895	500	365	300	450	425	449	698	1696
800	2000	500	800	792	710	670	653	674	735	600	2000	1975	1912	1935	1850	1830	1800	995	500	365	300	450	425	449	698	1896
800	2000	600	800	792	710	670	653	674	735	600	2000	1975	1912	1935	1850	1830	1800	995	600	465	400	550	525	549	698	1896
1000	1800	400	1000	992	910	870	853	874	935	800	1800	1775	1712	1735	1650	1630	1600	895	400	265	200	350	325	349	898	1696
1200	1600	500	1200	593.52	1110	1070	4542	474*2	1135	1000	1600	1575	1512	1535	1450	1430	1400	795	500	365	300	450	425	449	1098	1496
1200	1800	400	1200	593.5*2	1110	1070	454*2	474*2	1135	1000	1800	1775	1712	1735	1650	1630	1600	895	400	265	200	350	325	349	1098	1696
1200	2000	500	1200	593.5*2	1110	1070	454*2	474*2	1135	1000	2000	1975	1912	1935	1850	1830	1800	995	500	365	300	450	425	449I	1098	1896

Selection Recommendations

If your current project has the following characteristics, Shangming recommends choosing the PS modular cabinet:

Expansion Required: The project may require additional cabinets in the future, allowing for system expansion through cabinet merging.

Complex Installation: The cabinet requires the installation of numerous PLCs, frequency converters, and cable trays, necessitating comprehensive layout using 25mm holes.

High Current System: Requires the installation of a heavy-duty copper busbar system spanning multiple cabinets.

If the above conditions are not met, but the following requirements are met, you can choose the ES stainless steel cabinet:

Independent Single-Unit Control: The equipment operates independently and does not need to be merged with other cabinets.

Harsh Environments or High Hygiene Requirements: Installed in food processing workshops requiring high-pressure water washing, or chemical plants filled with acid and alkali corrosion.

High Sealing Requirements: High requirements for dust and water resistance.

Focus on Cost-Effectiveness: When merging cabinets is not required, ES cabinets are generally simpler in structure and more cost-effective than PS cabinets of the same material.
