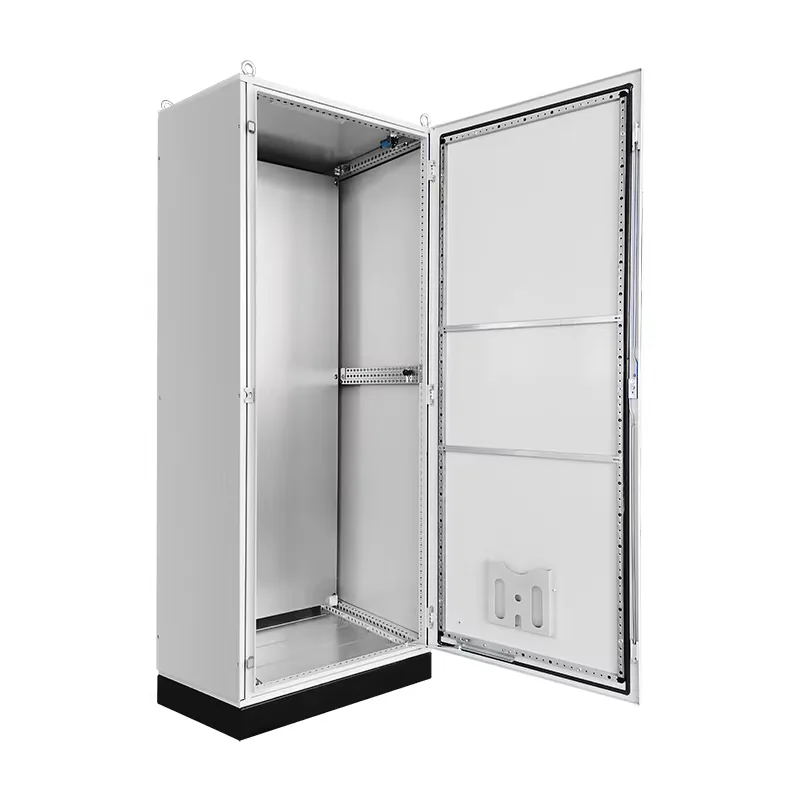

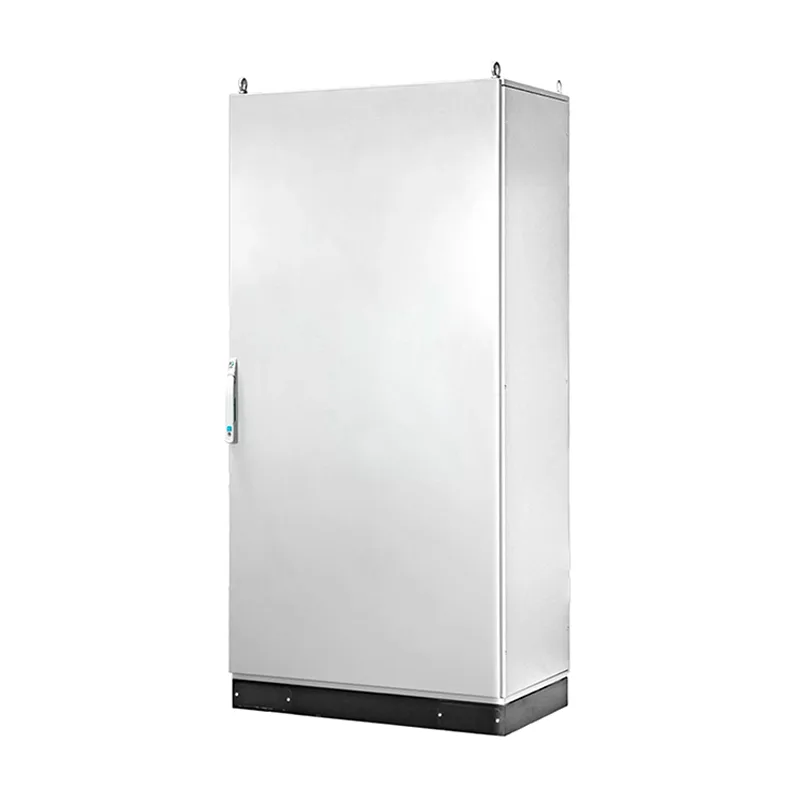

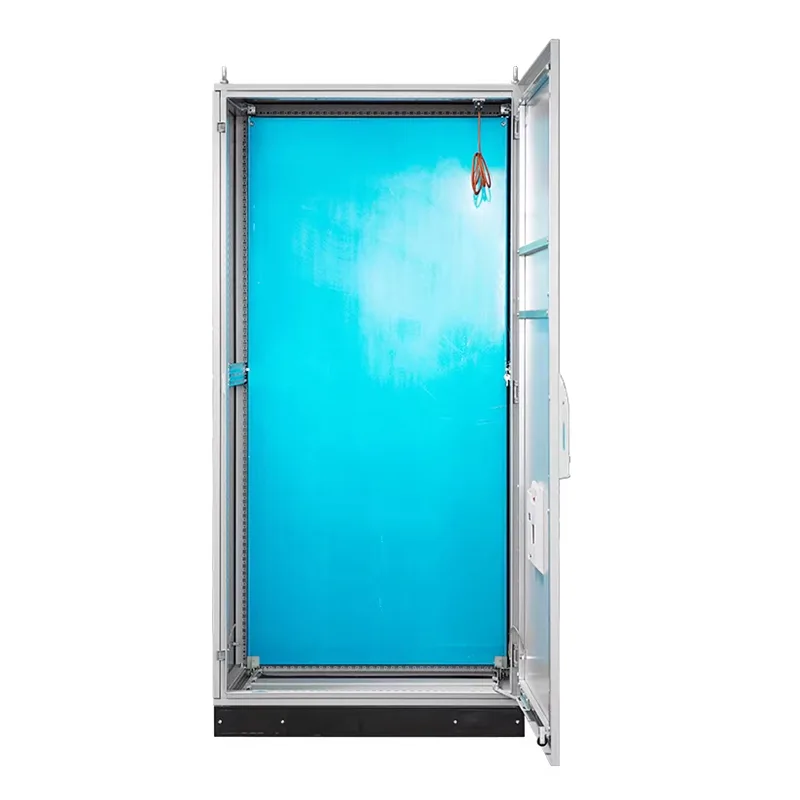

PS Combination Distribution Cabinet

As a supplier of PS Combination Distribution Cabinets, Shangming owns its own factory and offers direct sales prices. This product is a modular cabinet suitable for parallel use, with a removable top panel and detachable side panels, making installation and disassembly convenient. The cabinet has high strength and a protection rating of IP54 or higher.

Send Inquiry

Product Description

Shangming is a China manufacturer of PS Combination Distribution Cabinets, offering high-quality, high-performance products at competitive prices. This distribution cabinet features a high door panel, approximately 25mm off the ground, allowing for smooth and flexible opening. The main frame is constructed from a single welded section of nine-fold profile.

What is a PS Combination Distribution Cabinet?

A PS Combination Distribution Cabinet is not a single-function cabinet, but a modular low-voltage distribution cabinet that integrates power distribution and control, and signal circuits. It can consist of one or more cabinets connected in parallel, offering multiple functions and wide applications.

The main structure of the distribution cabinet uses special nine-fold profiles, enhancing longitudinal load-bearing capacity and torsional strength. Standard-spaced mounting holes facilitate flexible positioning of internal beams and components.

If parallel cabinet assembly is required, only the end cabinets need side panels; the middle section can be completely open. The top cover, door panels, back panel, and bottom plate are all independent modules, allowing for individual replacement if damaged.

If your project requires expansion, you can choose Shangming's PS modular distribution cabinet. Our modular design can save you 40% of on-site assembly time.

Key Features

Modular Design: The cabinet integrates both high-voltage and low-voltage electrical components and control elements, achieving unified power and control.

Standardization: Based on IEC 61439 / GB 7251 standards, it adopts a standard modular structure, universal rails, and drawer or fixed partition units.

High Integration: It can integrate main switches, branch circuits, motor starters, smart meters, communication modules, surge protectors, etc.

Configuration: Supports fixed, drawer-type, or hybrid installations, simplifying future maintenance and expansion.

Recommended Applications: Situations requiring simultaneous management of power distribution and automated control, such as building automation, pump rooms, HVAC systems, and production line control stations.

Technical Parameters

Material	SUS304 (other material grades are available)
Surface treatment	Cabinet phosphating primer treatment, external powder coating, color can be divided into RAL7032 and RAL7035 weaving patterns, installation plate is galvanized.

Protection level	IP55 (pressGB4205-1993)

Standard Configuration	Front door, back panel, installation panel, side panel cabinet, door lock, sealing strip
Steel plate thickness	Frame: Nine fold profile 1.5mm Door panel: 2.0mm Back panel,side panel: 1.5mm Installation panel: 2.5mm

Ordering Specifications

Order number (PS)	Order number(PS)	Width	Height	Depth	Side panel order number (PS7032)	Side panel ordering number (PS7035)
PS601840002	PS601840005	600	1800	400	PS1840002	PS1840005
PS601850002	PS601850005	600	1800	500	PS1850002	PS1850005
PS601860002	PS601860005	600	1800	600	PS1860002	PS1860005
PS602040002	PS602040005	600	2000	400	PS2040002	PS2040005
PS602050002	PS602050005	600	2000	500	PS2050002	PS2050005
PS602060002	PS602060005	600	2000	600	PS2060002	PS2060005
PS602080002	PS602080005	600	2000	800	PS2080002	PS2080005
PS602260002	PS602260005	600	2200	600	PS2260002	PS2260005
PS801840002	PS801840005	800	1800	400	PS1840002	PS1840005
PS801850002	PS801850005	800	1800	500	PS1850002	PS1850005
PS801860002	PS801860005	800	1800	600	PS1860002	PS1860005
PS802040002	PS802040005	800	2000	400	PS2040002	PS2040005
PS802050002	PS802050005	800	2000	500	PS2050002	PS2050005
PS802060002	PS802060005	800	2000	600	PS2060002	PS2060005
PS802080002	PS802080005	800	2000	800	PS2080002	PS2080005
PS802260002	PS802260005	800	2200	600	PS2260002	PS2260005
PS101840002	PS101840005	1000	1800	400	PS1840002	PS1840005
PS121840002	PS121840005	1200	1800	400	PS1840002	PS1840005
PS121850002	PS121850005	1200	1800	500	PS1850002	PS1850005
PS121860002	PS121860005	1200	1800	600	PS1860002	PS1860005
PS122040002	PS122040005	1200	2000	400	PS2040002	PS2040005
PS122050002	PS122050005	1200	2000	500	PS2050002	PS2050005
PS122060002	PS122060005	1200	2000	600	PS2060002	PS2060005
PS122080002	PS122080005	1200	2000	800	PS2080002	PS2080005
PS122060002	PS122060005	1200	2200	600	PS2260002	PS2260005
PS102050002	PS102050005	1000	2000	500	PS2050002	PS2050005
PS102060002	PS102060005	1000	2000	600	PS2060002	PS2060005

Standard Power Distribution Cabinet Vs. PS Combination Power Distribution Cabinet: What Are the Differences?

Characteristic	Ordinary welding distribution cabinet	PS Combination Power Distribution Cabinet
Skeletal structure	The steel plates are directly welded together, without an independent frame.	Nine-fold profile frame structure, bolted or welded
Flexibility	There are few fixing holes, and subsequent modifications will require drilling and cutting.	25mm modular holes in all directions, crossbeam can be adjusted arbitrarily.
Consolidation capacity	The cabinets have poor integration capabilities; the side panels are usually welded, making it impossible to completely open up the interior.	Extremely strong, with removable side panels, allowing for seamless splicing of multiple cabinets.
Load-bearing capacity	Common, suitable for small and medium-sized components	Super strong, with a heavy-duty frame, suitable for heavy-duty frequency inverters and busbars.
Ease of maintenance	It only opens from the front (or back), and the operating space is limited.	Fully removable, including front and rear doors, side panels, and roof.
Production costs	Lower price, suitable for single, standardized small cabinets	Higher

When Is It Recommended to Use PS Combination Distribution Cabinets?

1. Systems requiring power distribution + automatic control

In such cases, using ordinary distribution cabinets would require an additional control box, resulting in numerous control cables running between the two, which is prone to errors and difficult to maintain. When discussing solutions with you, Shangming also recommends PS modular cabinets.

Common applications: Fire pump/domestic water pump rooms, HVAC systems, sewage pump stations.

2. Space-constrained environments

Smaller machine rooms or equipment rooms, such as basement pump rooms, rooftop elevator machine rooms, and small substations, cannot accommodate multiple independent cabinets. PS cabinets integrate power and control, saving space.

3. Needs for intelligent or remote monitoring

PS cabinets can be pre-integrated with smart meters, communication gateways, and I/O modules, avoiding the need for later modifications.

4. Small and medium-sized automated production lines or equipment support

Production lines include packaging machines, conveyor lines, cleaning equipment, etc. Each piece of equipment requires independent power distribution and start/stop/emergency stop/interlock control. PS cabinets allow for one cabinet per machine, ensuring high standardization and facilitating mass replication.

5. Requirements for efficient construction and rapid delivery

As a professional manufacturer, Shangming provides pre-integrated and pre-tested products in the factory. On-site installation only requires connection to the main power supply and signal lines, reducing the need for cross-operation between on-site electricians and automation engineers and shortening the construction period.
