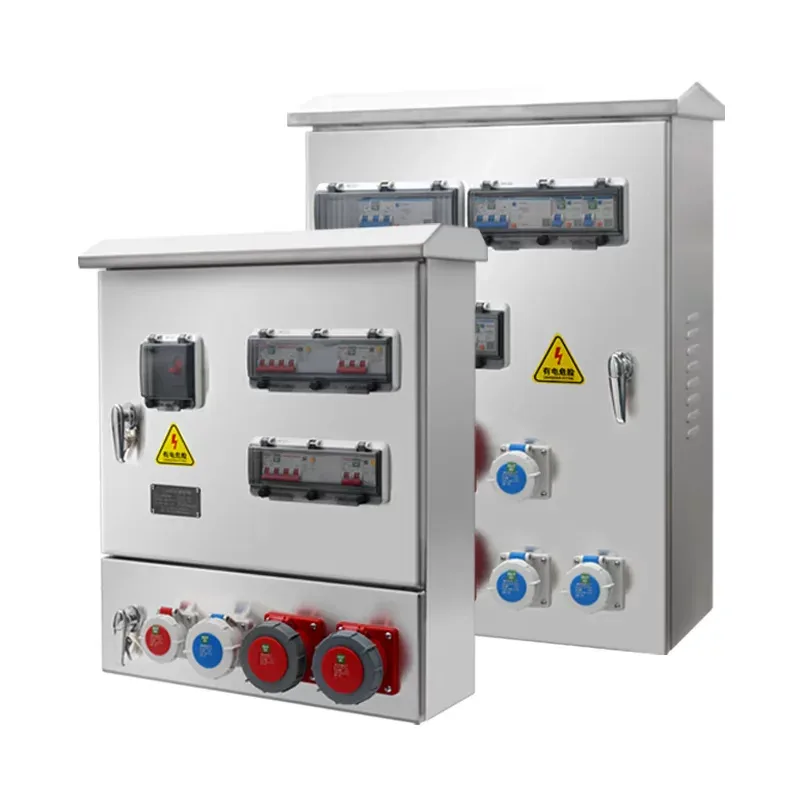

Industrial Socket Maintenance Power Distribution Box

Industrial Socket Maintenance Power Distribution Boxes are highly safe, modular, plug-and-play power distribution units. Maintenance personnel can safely draw power simply by inserting tools without opening the main distribution cabinet or wiring. Shangming, as a professional factory, designs and manufactures reliable solutions for you and supports comprehensive customization.

Why Is a Dedicated Maintenance Distribution Box Needed?

Plug and Play: With an industrial socket maintenance power supply box, maintenance personnel can directly connect to power via standard industrial plugs without disassembling wires, improving maintenance efficiency.

Safety Isolation: This product is specifically designed for maintenance tasks, avoiding interference from temporary wiring to the main production line power supply system.

Standardized Management: Uniform socket interfaces prevent phase errors or short circuits caused by messy wiring.

Clear Viewing Window Design: The box features a transparent operating window, allowing maintenance personnel to observe the circuit breaker status or perform reset operations without opening the cover.

Structure and Functional Configuration

1. Input Method

Fixed Installation Type: Power drawn from the upstream MCC cabinet or busbar, cable access terminals

Mobile Type: Equipped with industrial plugs, can be connected to temporary power carts or generators

2. Output Configuration

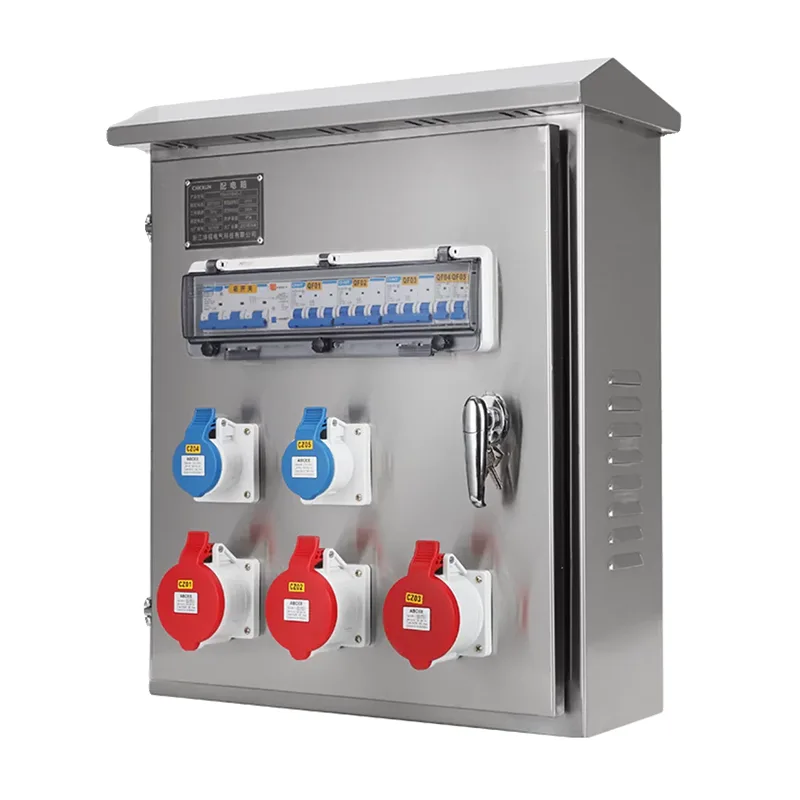

Multi-channel industrial socket combination, including:

Three-phase socket: 32A/63A red CEE

Single-phase socket: 16A/32A blue or yellow CEE

Special Voltage: 110V safety isolation socket

Independent protection for each circuit: Miniature circuit breaker + optional residual current device (RCD)

Clearly labeled circuit purpose, voltage, and current

3. Safety and Protection Design

Protection Rating: IP54 or IP65

Door Interlock (Optional): Automatically cuts off output power when the door is opened to prevent live operation

Emergency Stop Button: One-button cut-off of all outputs

Grounding Continuity: All socket PE terminals are reliably connected to the main grounding busbar

4. Enclosure Material

Indoor: Powder-coated cold-rolled steel (IP54);

Outdoor Environment: 304 stainless steel (IP65+);

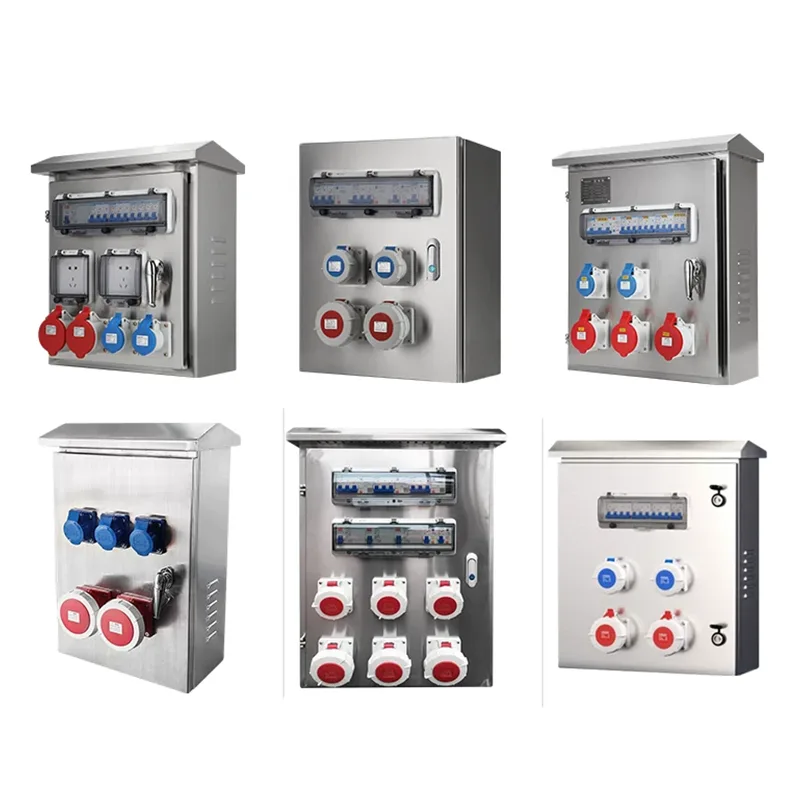

Product Comparison

Application Scenarios

1. Manufacturing Workshop Equipment Maintenance: Industrial Socket Maintenance Power Distribution Boxes are suitable for installation near CNC machine tools, injection molding machines, and robot workstations. During maintenance, power wrenches, oscilloscopes, and temporary lighting can be directly plugged in without interrupting the main power supply.

2. Energy and Power Facility Maintenance: Common applications include power plant turbine platforms and substation relay protection rooms, providing power for relay protection testers, infrared thermal imagers, and temporary fans.

3. Rail Transit Depots: Maintenance power boxes can be used near subway and high-speed rail maintenance tracks, providing standard power interfaces for train air conditioning testing, battery charging, and undercarriage lighting.

4. Petrochemical and Mining Industries: Suitable for maintenance areas outside explosion-proof zones, using 110V safety voltage sockets to reduce the risk of electric shock in humid environments.

5. Shipbuilding and Offshore Platforms: This product can be used in engine room or deck maintenance points. An IP66 stainless steel enclosure is required to resist salt spray corrosion.

Usage Precautions

Compatibility Check: Before connecting the device, ensure that the device's plug current and voltage rating match the socket. This can be distinguished by color: blue represents 220V, and red represents 380V.

Do Not Plug or Unplug Under Load: For high-current loads (above 63A), first turn off the circuit breaker in the industrial socket maintenance power supply box before plugging or unplugging.

Regular Self-Check: The residual current device (RCD) in the maintenance box should be tested monthly by clicking the Test button to ensure it can instantly cut off power in the event of a fault.
