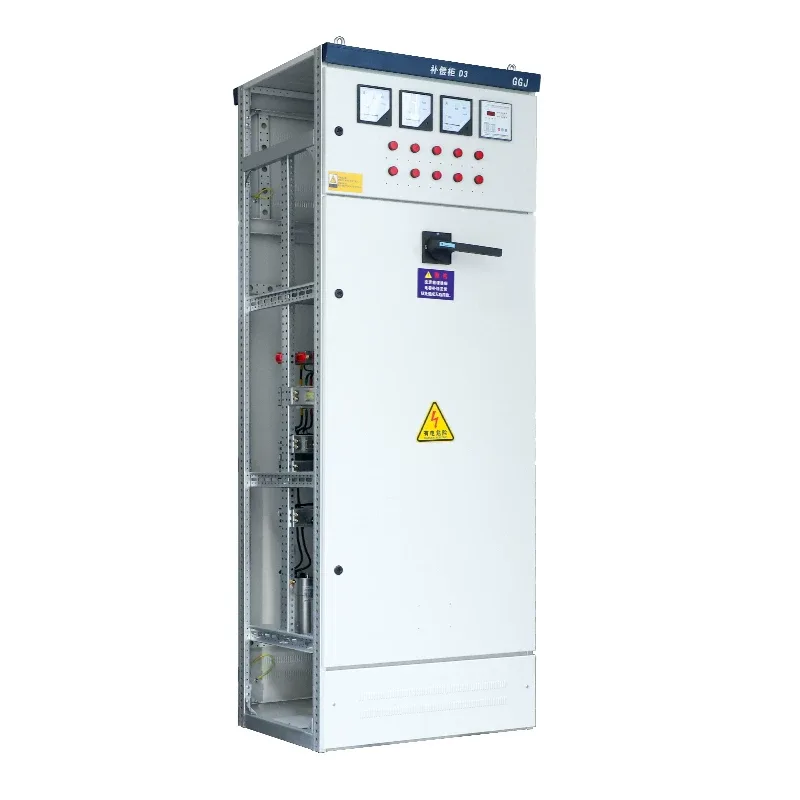

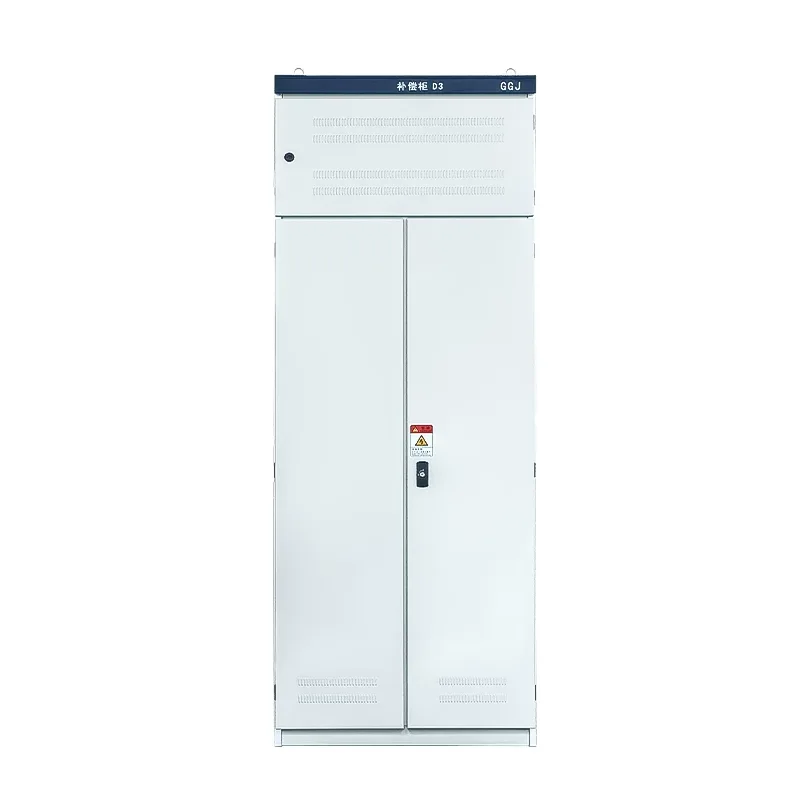

GGJ Low Voltage Reactive Power Compensation Cabinet

The GGJ Low Voltage Reactive Power Compensation Cabinet is one of the common models that Shangming can provide. As the factory, we offer the product directly to you at a competitive price. This product can improve the power factor, save energy and reduce consumption, and improve the quality of power grid operation.

Core Working Principle

The core task of the GGJ low-voltage reactive power compensation cabinet is to use the leading current generated by capacitors to offset the lagging current generated by inductive loads, with specific logic and steps.

1. Real-time Monitoring: The intelligent controller samples the system voltage, current, and power factor (cosφ);

2. Demand Judgment: When cosφ < set value (typically 0.92–0.95), compensation is initiated;

3. Automatic Switching: Capacitor banks are switched on according to preset strategies (cyclic/encoded/fuzzy control);

4. Zero-Crossing Switching (Optional): Thyristor switches (TSCs) are used to achieve zero inrush current switching, extending capacitor life.

Why are GGJ Compensation Cabinets Needed?

Most industrial loads, such as motors, transformers, and welding machines, are inductive loads. These devices consume not only active power but also a significant amount of reactive power to establish the magnetic field.

Without compensation, the power factor will decrease (below 0.9), leading to large voltage fluctuations in the power grid, wasted transformer capacity, and even fines from the power company.

After installing a GGJ low-voltage reactive power compensation cabinet, by connecting capacitors, the reactive current required by the inductive load is generated, thus improving the power factor of the main line (typically set between 0.92 and 0.98).

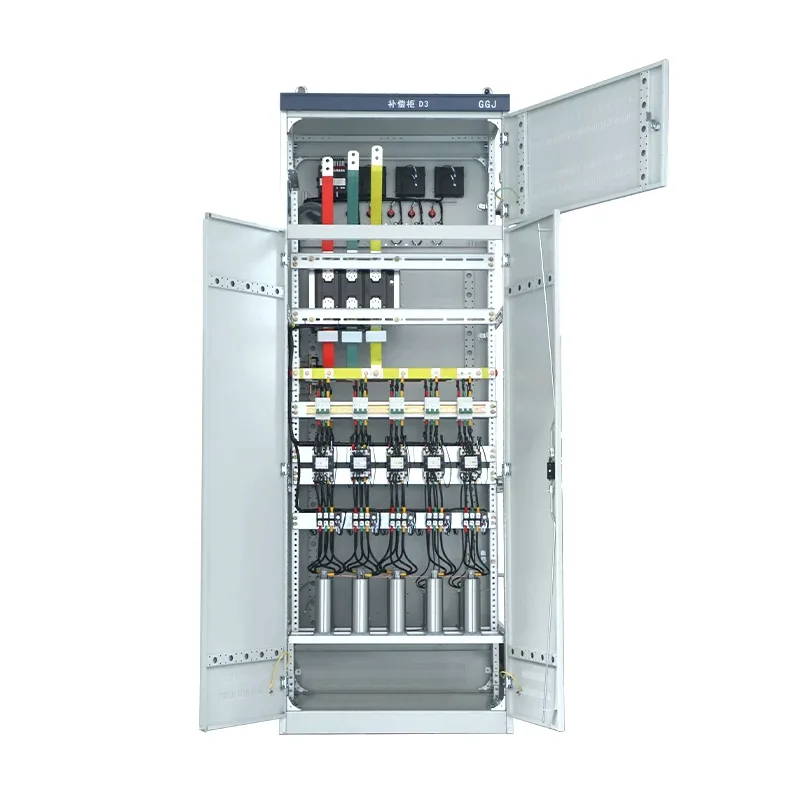

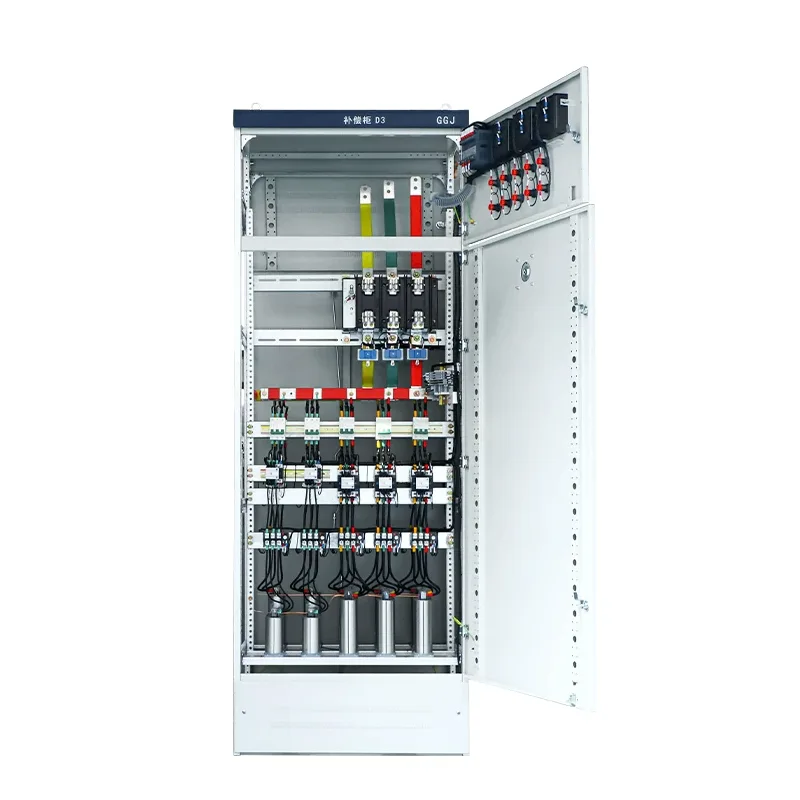

Core Components

Shangming's GGJ Low Voltage Reactive Power Compensation Cabinet is not a simple switchgear. It integrates the following components with precision, ensuring reliable quality and stable performance through our rigorous processes and testing procedures.

● Automatic Reactive Power Controller: Responsible for real-time monitoring of the power factor of the power grid. When it falls below the set value, it automatically issues a command to connect capacitors.

● Low-voltage Self-Healing Capacitor: The core energy storage component, providing advanced reactive current.

● Switching Switches: Includes dedicated capacitor contactors and composite switches. The former is a mechanical switch with inrush current suppression devices, while the latter achieves zero-crossing switching, eliminating sparks and inrush current, suitable for frequent switching applications.

● Series Reactor: Used to suppress harmonics and limit inrush current during capacitor switching, protecting capacitors from burnout.

● Fuse: Provides short-circuit protection.

Core Advantages

1. Energy Saving and Cost Reduction: The GGJ low-voltage reactive power compensation cabinet improves the power factor, avoiding penalties from the power bureau's power adjustment fees. This is a common issue we encounter when working with domestic Chinese clients and is a design that meets their needs. It reduces line current and copper losses (I²R), saving 5%–15% on electricity bills.

2. Improved Power Quality: The compensation cabinet stabilizes bus voltage, preventing voltage drops caused by motor start-up and shutdown, freeing up transformer capacity, and delaying capacity expansion investment.

3. Automated Operation: We use advanced design, ensuring stable performance. The equipment can automatically switch on and off 24/7 without manual intervention. It can self-diagnose common faults such as capacitor failure and over-temperature alarms. Technical support is available from Shangming at any time.

4. High Safety: The capacitors use dry-type self-healing technology, automatically isolating faults and preventing explosions. The reactor suppresses resonance, preventing compensation from becoming catastrophic.

GGJ Comparison with Other Compensation Methods

GGJ is the king of cost-effectiveness, providing the most economical reactive power compensation in harmonic-controlled steady-state systems.

Common Faults and Troubleshooting Suggestions
