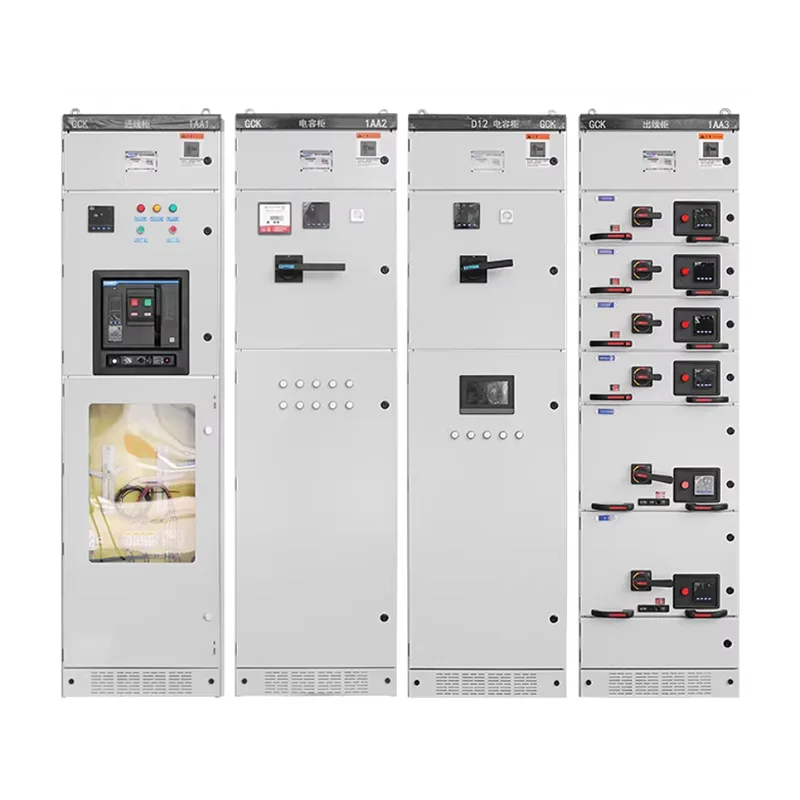

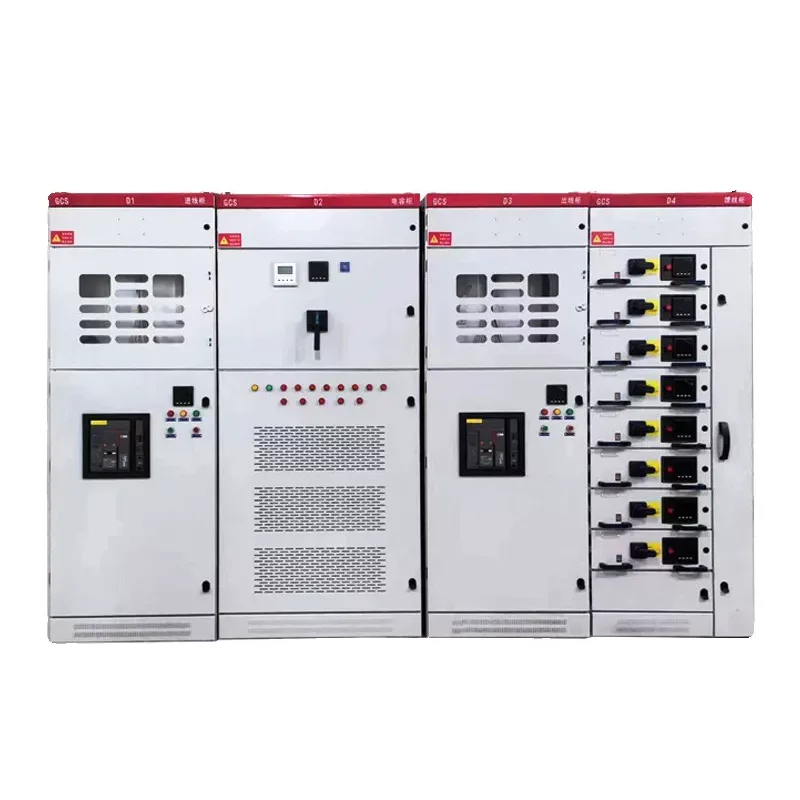

GCS Low Voltage Withdrawable Switchgear

GCS Low Voltage Withdrawable Switchgear has a simplified structure, good component compatibility, and is 20%-35% cheaper than MNS, making it suitable for budget-sensitive projects. If you are interested in choosing this product and starting to develop a project plan, please feel free to contact Shangming, a reliable supplier from Yueqing, Wenzhou, China.

Product Features

The GCS low-voltage withdrawable switchgear combines the high reliability of MNS with the ease of operation of GGD, making it ideal for low-voltage power distribution systems with many circuits, frequent maintenance, and a focus on controlling overall costs.

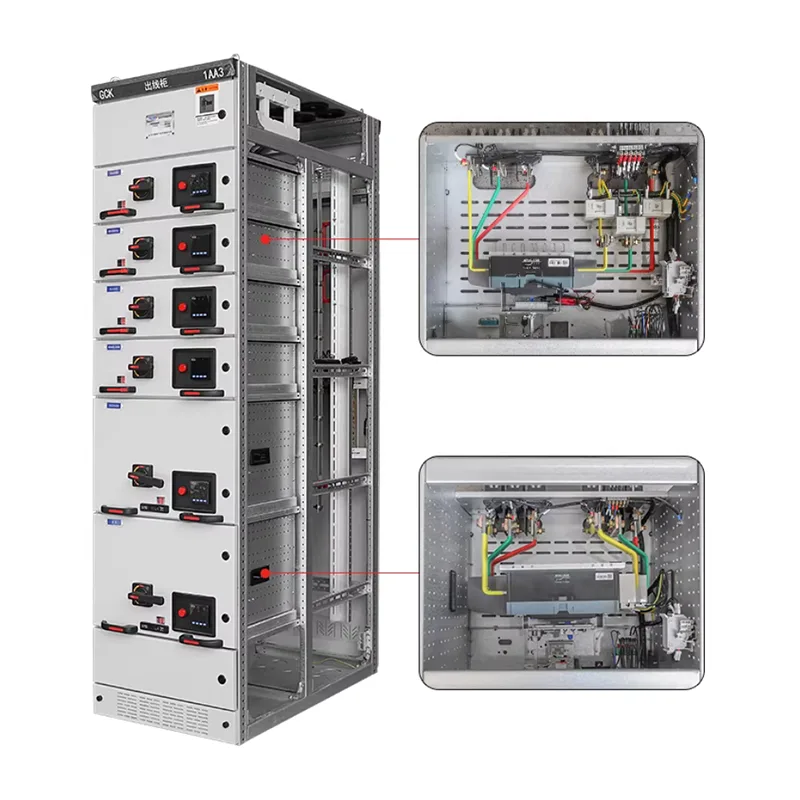

1. Modular Withdrawable Structure

GCS functional units adopt a standard drawer-type design, allowing for quick insertion and removal. In case of a single circuit failure or maintenance, the unit can be independently withdrawn without affecting the operation of other circuits, reducing power outage time and maintenance costs.

The switchgear's modular design offers strong versatility, facilitating future expansion or replacement.

2. High Safety Level

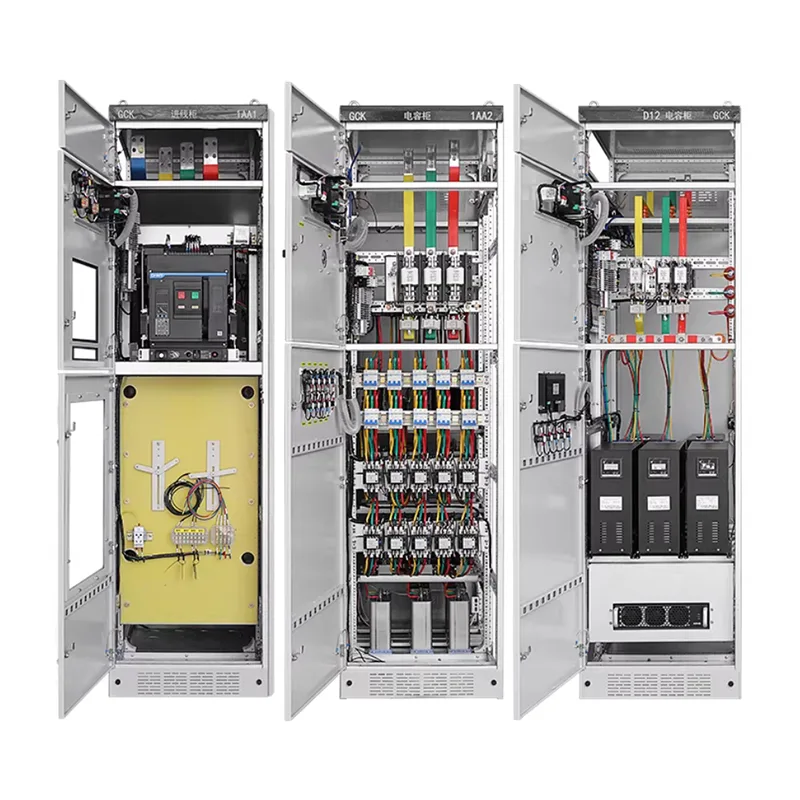

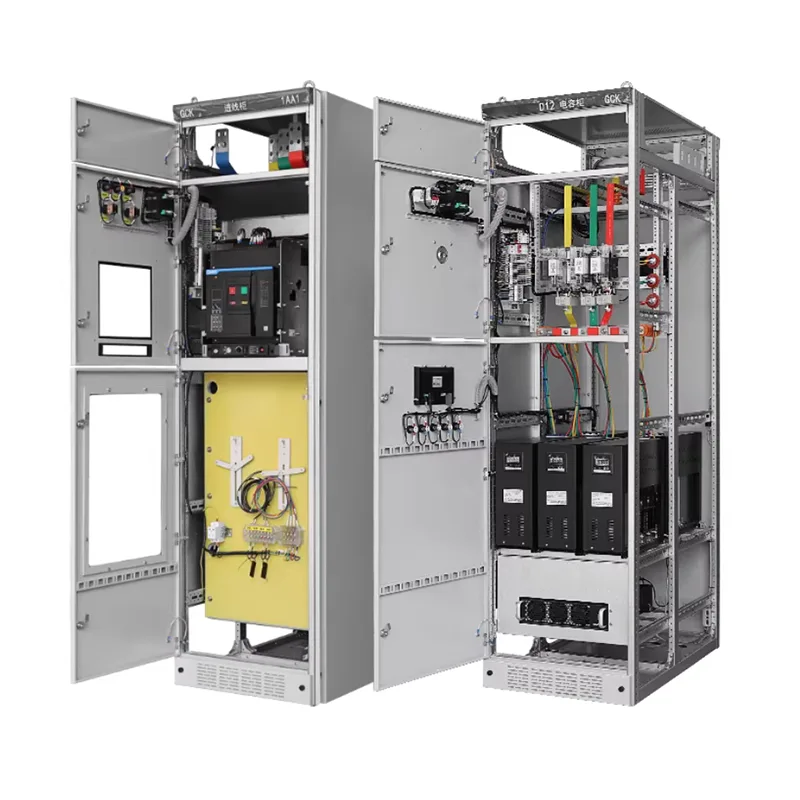

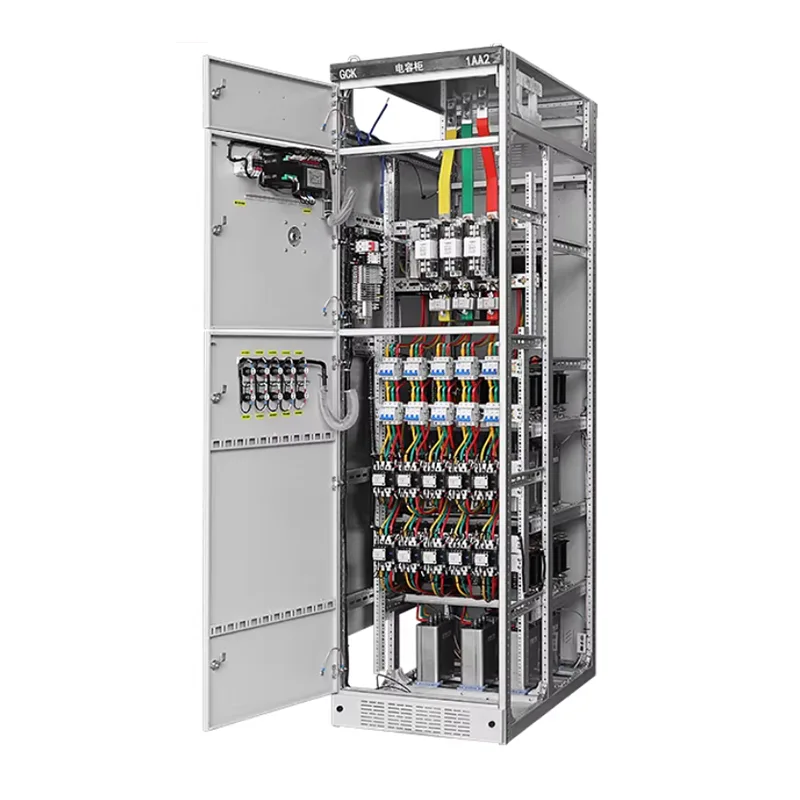

The GCS cabinet is internally divided into: a busbar compartment, a functional unit compartment, and a cable compartment. These functional areas are effectively isolated to prevent fault propagation.

We support options for higher protection levels, which can be customized based on actual operating conditions.

Safety features enhance operational safety and stability, meeting the power requirements of industrial and public works projects.

3. Convenient Maintenance and Operation

The drawer unit features test, working, and disconnect positions, allowing for inspection and replacement even under power-off or partially energized conditions. The wiring and operating space are rationally designed, making it user-friendly for maintenance personnel and suitable for systems requiring frequent maintenance, such as MCC scenarios.

4. Wide Applicability

The GCS cabinet can be used as a distribution cabinet, feeder cabinet, motor control center (MCC), etc., supporting various electrical component combinations and adapting to different capacity and circuit quantity requirements. A single system can cover multiple application needs.

5. High Cost-Effectiveness

Compared to MNS withdrawable cabinets, the GCS has a simpler structure and more controllable costs.

Compared to fixed switchgear, it offers significant advantages in safety and maintainability, making it particularly suitable for medium to large-scale projects or budget-sensitive projects, achieving a balance between performance and cost.

How to Maintain a GCS Low Voltage Withdrawable Switchgear?

To extend its service life, prevent malfunctions, and ensure continuous power supply, proper maintenance is crucial. Shangming provides comprehensive documentation and offers some suggestions.

I. Daily Inspection

1. Operation Indicator Check: Drawer panel indicator lights should not flash abnormally; ammeter current should be balanced.

2. Temperature Rise Check: Use a handheld infrared thermometer to measure the temperature rise of the main busbar connector, drawer primary connectors, and circuit breaker inlet/outlet terminals. ≤40K (≤80℃ at ambient temperature +40℃).

3. Abnormal Odor/Sound Check: Check for burning smells, discharge sounds, or buzzing noises.

4. Door Seal and Cleaning Check: Are the cabinet door seals aged? Is there internal dust accumulation?

5. Drawer Position Check: Are all drawers in their connected positions? Are they loose?

II. Periodic Maintenance

Step 1: Power Off Preparation. Confirm that the upstream power supply is disconnected and test for voltage.

Step 2: Move the drawer requiring maintenance to the open position and pull it out completely. Note that primary plugs will automatically disconnect; secondary plugs can be manually removed.

Step 3: Drawer Unit Maintenance. Different components require different maintenance procedures, including cleaning and testing.

Step 4: Cabinet Internal Maintenance

Main Busbar: Check for loose bolts.

Vertical Branch Busbar: Clean accumulated dust and check for damaged insulation sheaths.

Cable Compartment: Organize cables and check for overheating or discoloration of cable ends.

Grounding System: Measure the grounding resistance between the PE busbar and the cabinet (should be ≤0.1Ω).

Step 5: Functional Test

Push the drawer back to the connection position. After powering on, test the control circuit in the test position. Run a no-load test for 10 minutes to confirm there are no abnormalities.

Key Maintenance Precautions

1. Never plug or unplug primary modules while they are powered on.

Primary modules carry high current in the main circuit and must be operated only after the drawer is in the open position and the system is powered off.

Otherwise, it may cause an electric arc, resulting in personal injury or equipment damage.

2. Do not mix drawers of different sizes.

GCS drawers are designed in 1/2, 1, 2, and 3 unit sizes, with heights strictly corresponding to the primary module positions.

Incorrect installation will lead to module misalignment, poor contact, and overheating.

3. Regularly check the five-proof interlock.

Test: With the circuit breaker closed, can the drawer be pulled out? It should not.

If the interlock fails, immediately stop use and repair to prevent misoperation.

4. Enhance anti-condensation measures in humid environments.

If your project is located in the rainy season or in a water plant, check the heater's operation monthly.

When confirming the solution, you can choose to install an intelligent condensation controller for automatic start-stop.

FAQ

Q: When customizing a switchgear cabinet, how do I choose between a fixed type (GGD) or a withdrawable type (GCS/MNS)?

A: GGD is suitable when: Limited budget, single load, allowance for power outage maintenance, or harsh environment; fixed wiring is more reliable in these cases.

GCS/MNS is suitable when: Core production lines experience significant power outage losses, numerous circuits with limited space, require rapid live-line maintenance, and prioritize high automation and intelligence.

Q: How does altitude affect switchgear customization?

A: At altitudes above 1000 meters, the thin air reduces heat dissipation and insulation capacity.

You must inform us during customization if you require increased air gaps, higher-grade insulators, or derating during selection.

Q: Why are the drawers of GCS low-voltage withdrawable switchgear sometimes difficult to pull out or insert?

A: Guide rail deformation: This may be due to uneven foundation during installation, causing cabinet distortion.

Interlocking: Check if the circuit breaker is fully in the open position. For safety, the mechanical interlock will lock the drawer when the circuit breaker is engaged.

Lubrication failure: Lack of maintenance over a long period can cause the mechanical mechanism to become stiff. Do not forcefully push or pull the drawer; remove any foreign objects and apply a suitable amount of lubricant.
