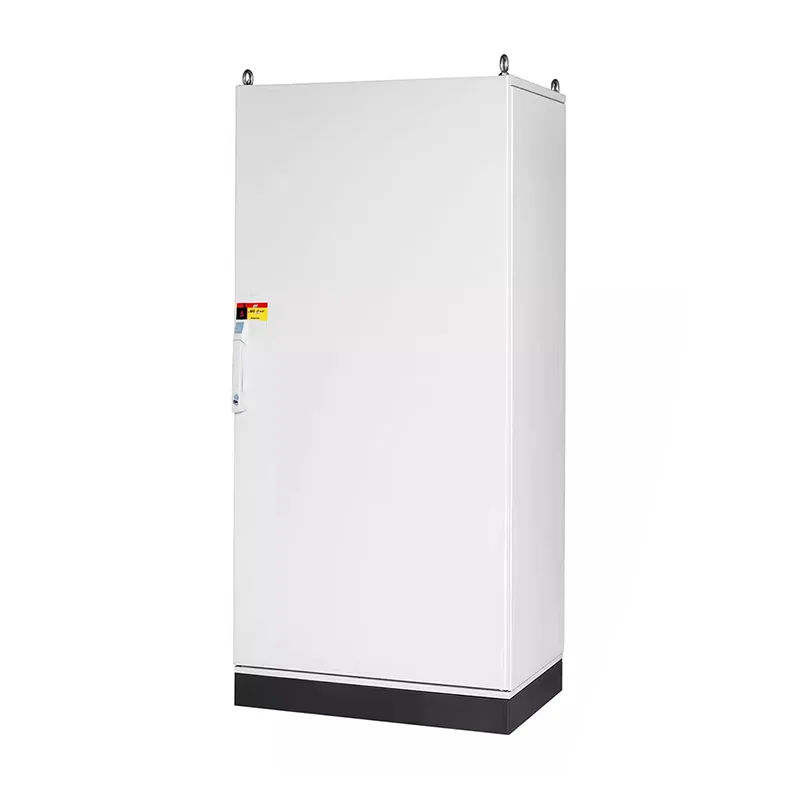

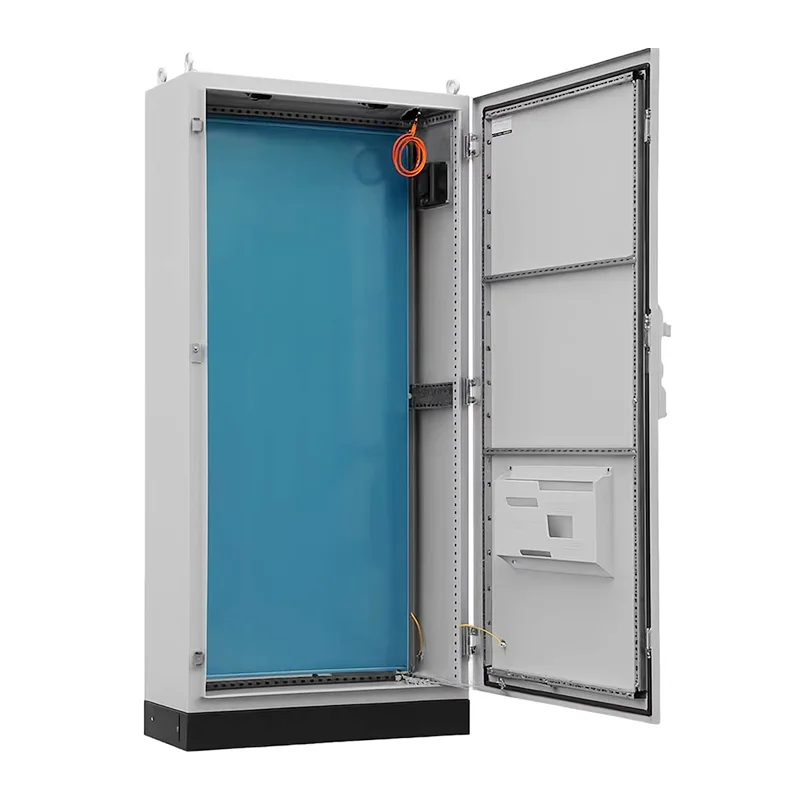

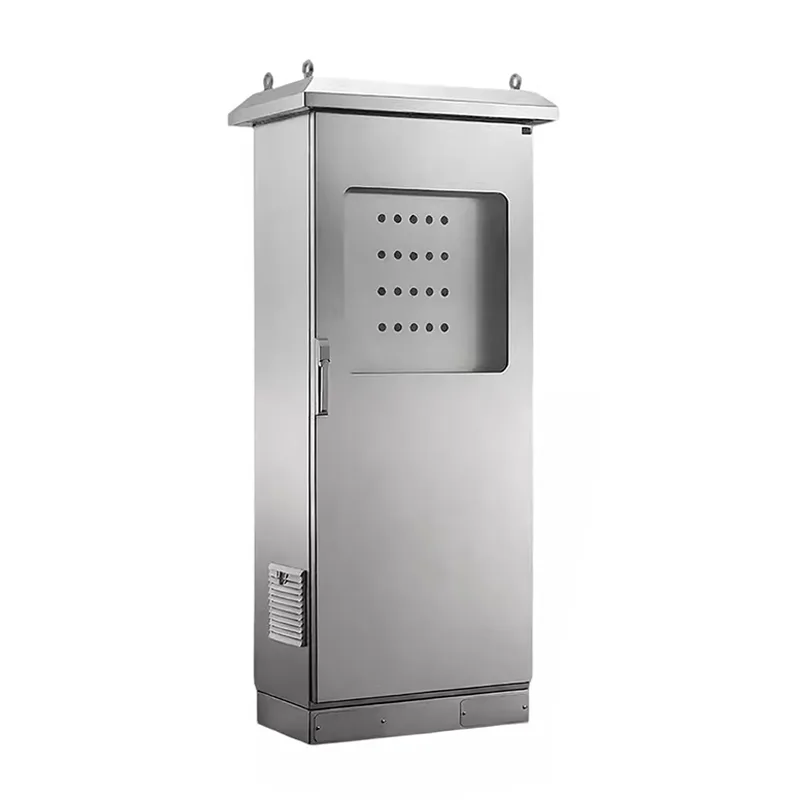

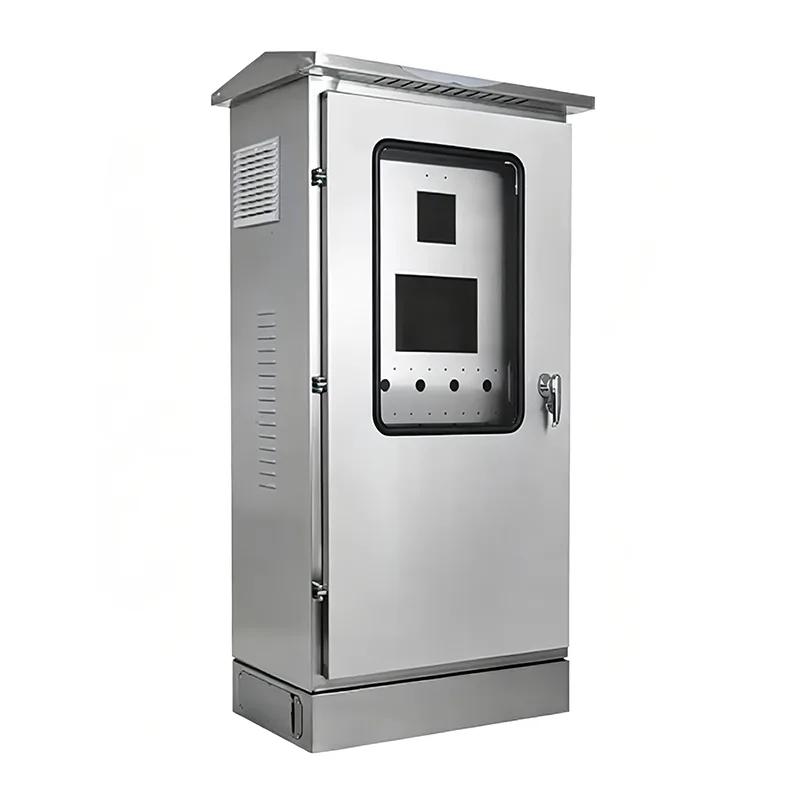

ES Five-Fold Profile Power Distribution Cabinet

Shangming, from Yueqing, Wenzhou, China, is a professional manufacturer of ES Five-Fold Profile Power Distribution Cabinets. We choose high-strength cold-rolled steel plates and process them into this product through five continuous bending processes. The door panel is high off the ground, making installation and maintenance convenient. We also offer different specifications and sizes for you to choose from, and welcome custom designs based on your drawings.

Send Inquiry

Product Description

The ES Five-Fold Profile Power Distribution Cabinet is a reliable product with high strength and IP55 protection rating. The densely packed 25mm-pitched modular holes on the frame ensure installation flexibility and versatility. This product is provided by the Chinese manufacturer Shangming. We support non-standard customization and can offer complete solutions and competitive prices.

Core Structural Features

The ES Five-Fold Profile Power Distribution Cabinet's main load-bearing frame undergoes five precise bends, forming a five-fold profile skeleton. This multi-bending design not only enhances the longitudinal load-bearing capacity of the steel plate but also creates a natural water-stop groove structure, effectively preventing liquid seepage.

The top, bottom, and side panels of the cabinet are typically welded as a single unit, resulting in greater stability and torsional resistance compared to bolted assembly. The profiles feature standard 25mm spacing holes for standardized installation of internal electrical components.

This structure makes the ES five-fold cabinet suitable for high-capacity, multi-circuit power distribution needs, providing ample internal space and enabling more efficient wiring and maintenance.

Product Functions

Shangming's ES five-fold distribution cabinets are available in standard and customized models. For your project, they not only provide power but also offer a solid foundation for a safe, efficient, and evolving electrical system.

1. Structural Support and Load-Bearing Capacity

The five-fold profile is not just the outer shell but also the exoskeleton of the entire cabinet. The five-fold bending process enhances the longitudinal compressive strength of the profile, ensuring stability even after installing heavy equipment and preventing twisting or settling.

The interior of the profile is filled with standard holes. Combined with beams and a base plate, components can be freely arranged within the internal space, improving utilization.

2. Environmental Protection

Compared to ordinary distribution boxes, the ES cabinet offers better sealing. Due to the special folded edge structure formed at the cabinet opening by the five-fold profile, water flows along the folds to the outside of the cabinet instead of seeping into the sealing strip.

The cabinet, combined with high-quality CNC-applied sealing strips, effectively isolates extremely fine conductive dust and corrosive moisture, protecting the insulation performance of internal electronic components.

3. Integrated Thermal Management and Heat Dissipation

This product is a control cabinet, recommended by Shangming for projects that prioritize protecting components from burnout.

The five-fold frame and side panels support the installation of high-power industrial air conditioners or heat exchangers without causing seal failure due to vibration. The cabinet's internal structure promotes air convection circulation, preventing heat island effects at the top of the cabinet or in areas with dense components.

4. Safety Protection and Human-Machine Interface

We have professional grounding bolts between the cabinet door, side panels, and cabinet body, connected by a yellow-green double-color wire. The entire metal casing provides reliable protection against electric shock.

We offer customization options; you can choose a door panel with a transparent window, combined with a three-point interlocking lock, which facilitates inspection and physically prevents unauthorized personnel from opening the cabinet.

Technical Parameters

Material	SUS304 (other material models are optional)
Surface treatment	Wire drawing, installation version is galvanized
Protection level	IP55 (pressGB4205-1993)
Standard Configuration	Front door, back panel, installation panel, side panel cabinet, door lock, sealing strip
Steel plate thickness	Frame: Five fold profile 1.5mm Door panel: 2.0mm Back panel: 1.5mm Installation plate: 2.5mm

Size and Specification Table

Specifications and Dimensions			Width								Height								Depth						Installation board
Width	Height	Depth	B1	B2	B3	B5	B6	B7	B8	B9	H1	H2	H3	H5	H6	H7	H8	H9	T1	T2	T3	T4	T5	T6	F	G
600	1600	400	600	592	510	470	454	474	535	400	1600	1575	1512	1535	1450	1430	1400	795	400	265	200	350	325	349	498	1496
600	1600	500	600	592	510	470	453	474	535	400	1600	1575	1512	1535	1450	1430	1400	795	500	365	300	450	425	449	498	1496
600	1800	400	600	592	510	470	453	474	535	400	1800	1775	1712	1735	1650	1630	1600I	895	400	265	200I	350	325	349	498	1696
600	1800	500	600	592	510	470	453	474	535	400	1800	1775	1712	1735	1650	1630	1600	895	500	365	300	450	425	449	498	1696
800	2000	500	600I	592	510	470	453	474	535	400	2000	1975	1912	1935	1850	1830	1800	995	500	365	300	450	425	449	498	1896
800	1600	500	800	792	710	670	653	674	735	600	1600	1575	1512	1535	1450	1430	1400	795	500	365	300	450	425	449	698	1496
800	1800	400	800	792	710	670	653	674	735	600	1800	1775	1712	1735	1650	1630	1600	895	400	265	200	350	325	349	698	1696
800	1800	500	800	792	710	670	653	674	735	600	1800	1775	1712	1735	1650	1630	1600	895	500	365	300	450	425	449	698	1696
800	2000	500	800	792	710	670	653	674	735	600	2000	1975	1912	1935	1850	1830	1800	995	500	365	300	450	425	449	698	1896
800	2000	600	800	792	710	670	653	674	735	600	2000	1975	1912	1935	1850	1830	1800	995	600	465	400	550	525	549	698	1896
1000	1800	400	1000	992	910	870	853	874	935	800	1800	1775	1712	1735	1650	1630	1600	895	400	265	200	350	325	349	898	1696
1200	1600	500	1200	593.52	1110	1070	4542	474*2	1135	1000	1600	1575	1512	1535	1450	1430	1400	795	500	365	300	450	425	449	1098	1496
1200	1800	400	1200	593.5*2	1110	1070	454*2	474*2	1135	1000	1800	1775	1712	1735	1650	1630	1600	895	400	265	200	350	325	349	1098	1696
1200	2000	500	1200	593.5*2	1110	1070	454*2	474*2	1135	1000	2000	1975	1912	1935	1850	1830	1800	995	500	365	300	450	425	449I	1098	1896

Product Application Scenarios

We recommend this product for projects with challenging environments, requiring independent operation of single units, and demanding high structural rigidity. You can contact us at any time with your requirements to discuss and determine the specific selection solution.

Automated Control of Independent Mechanical Equipment

Due to its integrated welded structure, the ES five-fold power distribution cabinet is ideal for controlling large, single-unit equipment.

Typical Cases: Packaging machinery, injection molding machines, CNC machine tools, laser cutting machine control cabinets.

Why Choose It: Large, independent equipment operating as a single unit does not require parallel cabinet operation. The ES cabinet's sealed protection prevents oil mist and metal dust from seeping into the precision controller.

Pump Stations and Water Treatment

The ES Five-Fold Profile Power Distribution Cabinet offers greater advantages in humid or splash-prone environments.

Typical Cases: Outdoor water pump control boxes, aeration control systems in wastewater treatment plants, secondary power supply pump rooms.

Why Choose It: The mechanical waterproofing structure formed by the five-fold profile, combined with adhesive sealing strips, effectively resists rain and moisture. Even in long-term high-humidity environments, its integrated welded structure ensures that internal components remain dry.

Food and Pharmaceutical Industries

We recommend our power distribution cabinets for workshops requiring frequent rinsing or extremely high cleanliness standards. We use high-quality, safe materials and manufacture strictly according to required standards.

Typical Cases: Beverage bottling line control cabinets, pharmaceutical packaging line power cabinets.

Why Choose It: Constructed from stainless steel, the ES cabinet features smooth, rounded edges and minimal welds, making it less prone to bacterial or dust accumulation. Its surface is also resistant to chemical disinfectant sprays and high-pressure water jet cleaning.

Mining, Cement, and High-Vibration Environments

Our products can also be used in heavy industrial sites involving crushing, screening, or long-distance transportation. Shangming's factory has a 7-step quality inspection process, ensuring sufficient product strength.

Typical Cases: Mining conveyor belt control units, cement plant feed control panels, mobile generator set control cabinets.

Why Choose It: The one-piece welded structure provides excellent torque resistance. During severe vibration or hoisting, the five-bend frame protects the expensive internal frequency converters and PLC modules from poor contact or physical damage due to cabinet deformation.
