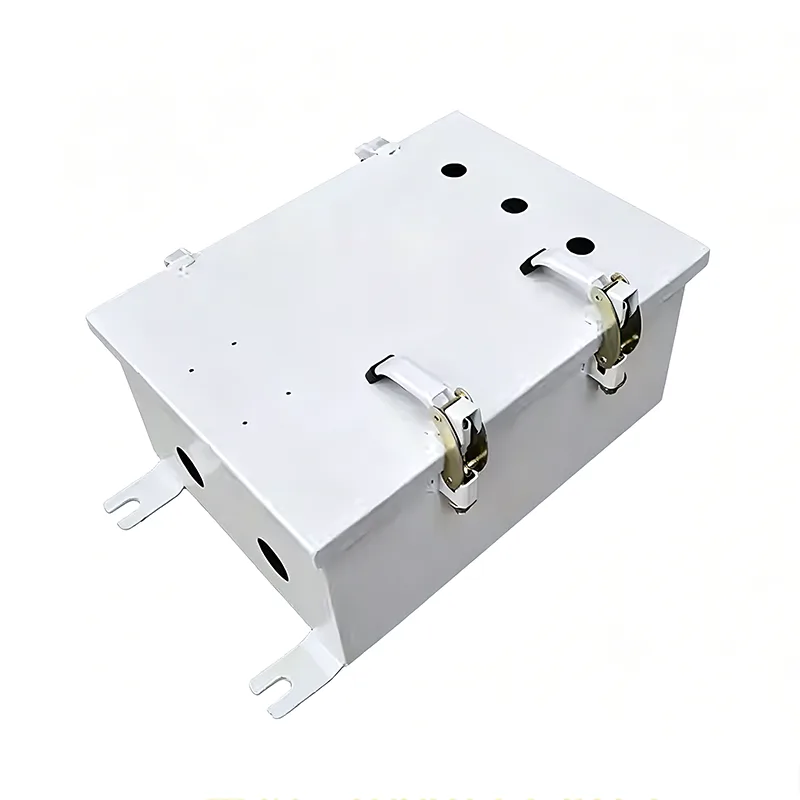

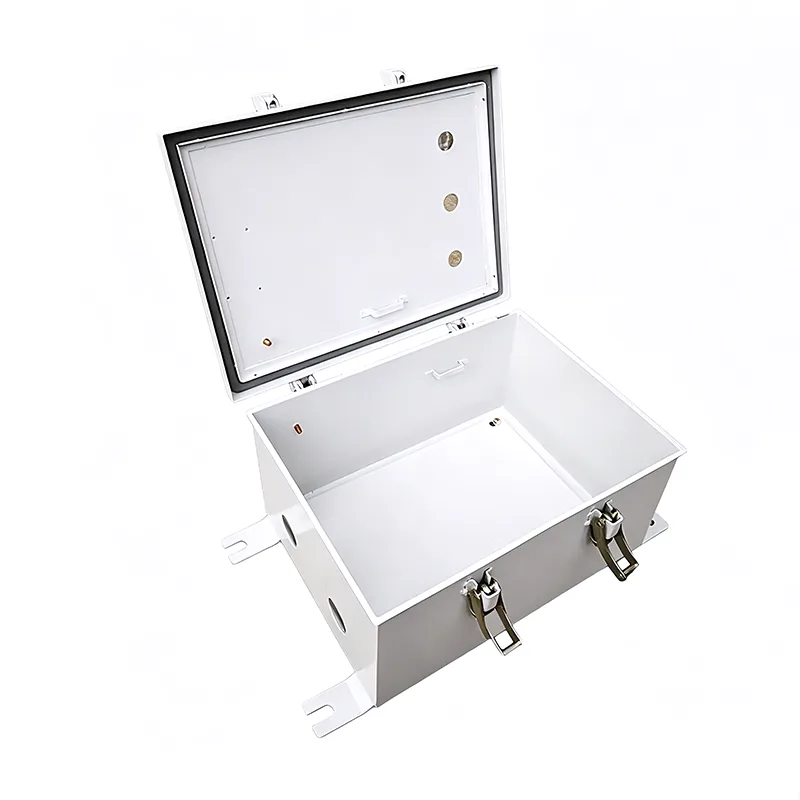

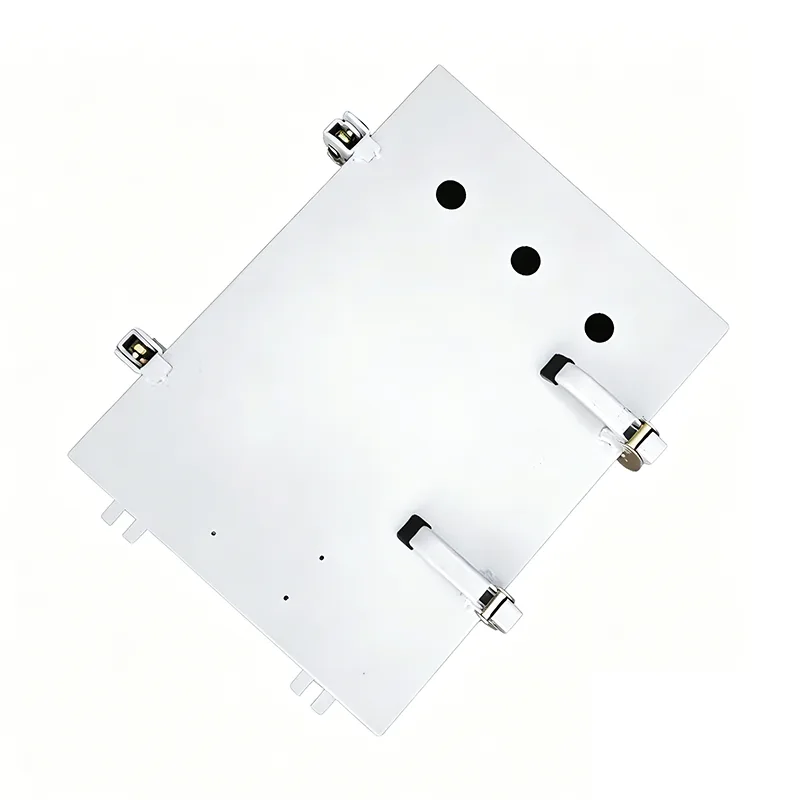

Marine Grade Stainless Steel Power Distribution Cabinet Enclosure

In the high humidity and salt spray environment of the seaside, Marine Grade Stainless Steel Power Distribution Cabinet Enclosures are essential for the long-term and safe protection of internal electrical equipment. Shangming is a manufacturer of such products, offering you factory-direct products at competitive prices, ensuring high cost-effectiveness.

Material Characteristics

The casing of marine-grade stainless steel distribution cabinets is made of 316 stainless steel, which differs from ordinary stainless steel cabinets.

Ordinary stainless steel distribution cabinets may use 304 stainless steel, which contains Cr/Ni but not molybdenum (Mo). In environments with chloride ion (Cl⁻) concentrations >200ppm, it is highly susceptible to pitting corrosion and stress corrosion cracking.

In contrast, 316 stainless steel contains 2–3% molybdenum, enhancing its resistance to chloride ions, resulting in a pitting corrosion equivalent (PREN) value ≥25 (compared to ≈19 for 304).

Actual Test Data: In the ISO 9227 salt spray test, 316 stainless steel can withstand ≥3000 hours without red rust, while 304 typically shows corrosion spots after 500–1000 hours.

Core Advantages

Marine Grade Stainless Steel Power Distribution Cabinet Enclosures boast four core advantages. Shangming designs products based on corresponding application environments, ensuring our products not only withstand the chemical influences of the environment but also possess sufficient physical strength for long-term use.

1. Resistance to Chloride Ion Corrosion

The greatest threat to metals in the marine environment is the high concentration of chloride ions in the air. We choose 316 stainless steel, which has strong resistance to pitting corrosion, preventing tiny rust spots from penetrating the metal and causing cabinet decay.

Before leaving the factory, each cabinet undergoes chemical passivation treatment, strengthening the surface chromium protective layer, making its lifespan in salt spray environments more than 3 times longer than ordinary stainless steel.

2. Structural Strength and Seismic Resistance

Ships face continuous low-frequency vibrations during navigation and severe impacts from large waves.

Our design features a reinforced frame, with thickened internal supports and mounting plates, reinforced with welded ribs to prevent physical displacement of components or loosening of fasteners due to vibration.

A three-point locking system is available, ensuring the cabinet door remains firmly against the frame even under high-intensity vibrations, maintaining its sealing performance.

3. Sealing Protection

The marine environment is not only humid but also subject to high-pressure spraying and wave erosion. The distribution cabinet achieves IP66 protection, employing high-grade silicone sealing strips that are resistant to high and low temperatures and aging.

The door frame features a unique V-shaped or U-shaped water-guiding channel design. Even when the sealing strip is under pressure, accumulated water will flow away along the guide rails, preventing seepage into the cabinet.

4. Low Maintenance Costs

On offshore platforms or ocean-going vessels, any repair represents a significant logistical cost. Marine-grade stainless steel requires no paint protection, avoiding the risk of secondary corrosion due to coating damage, blistering, or peeling.

While the initial cost of this product is higher, it requires virtually no rust-preventive coating work over its 20-year lifespan, reducing labor and downtime maintenance costs.

Precautions for Use

For long-term use in marine, port, or high-salt-spray environments, Shangming offers the following suggestions to better extend service life and stability, covering everything from the installation to maintenance of the marine-grade stainless steel distribution cabinet enclosure.

I. Installation Precautions

1. Avoid Contact with Dissimilar Metals

It is strictly forbidden to directly connect carbon steel brackets, galvanized bolts, or aluminum pipes to the cabinet. Different metals will form galvanic corrosion cells in salt spray environments, accelerating localized corrosion of the stainless steel.

Correct Practice: All connections must be made of 316 stainless steel.

2. Ensure Proper Grounding

The cabinet must be reliably connected to the ship/platform's main grounding network via a yellow-green copper cable. The grounding resistance should be ≤ 0.1Ω.

Note: Grounding protects against electric shock and lightning strikes, but it cannot replace the material's inherent corrosion resistance.

3. Cable Entry Sealing Must Be in Place

All incoming and outgoing cables must use 316 stainless steel waterproof glands and be tightened to the required torque to ensure the inner sealing ring is compressed.

Excess knockout holes must be sealed with original stainless steel plugs; plastic or rubber plugs are prohibited.

II. Operation and Handling Precautions

1. Do not use chlorine-containing cleaners

It is strictly forbidden to use cleaners containing sodium hypochlorite, hydrochloric acid, bleach, etc., to clean the cabinet. Chloride ions will damage the passivation film on the stainless steel surface, causing pitting corrosion.

Recommended cleaning method: Wipe with fresh water and a soft cloth. Stubborn stains can be treated with a neutral detergent.

2. Avoid mechanical damage to the surface

Do not use steel wool, sandpaper, or hard scrapers to clean the cabinet. Scratches will damage the Cr₂O₃ passivation film, becoming the starting point for corrosion. If the surface is scratched by iron tools, use stainless steel passivation paste for local repair.

3. Prevent water and foreign object accumulation

Regularly clean the top of the cabinet and the area around the base, removing seabird droppings, algae, salt crystals, and fishing net residue. These substances absorb moisture and form an electrolyte film, accelerating localized corrosion.

The bottom ventilation openings must be unobstructed to maintain natural convection cooling.

III. Maintenance and Inspection Recommendations

1. Regular Visual Inspection

Every 3 months, focus on checking for brown rust around welds, door locks, hinges, and glands;

checking for aging and cracking of sealing strips; and checking for condensation or salt spray penetration marks internally.

Treatment: Brown rust can be removed with a special stainless steel cleaning paste.

2. Internal Electrical Connection Inspection

Inspect annually after power failure: Check for loose main busbars and terminal blocks; ensure grounding wire connections are secure; and check for overheating and discoloration of components.

Due to the high humidity of marine environments, it is recommended to use an infrared thermal imager to detect abnormal temperature rises.
