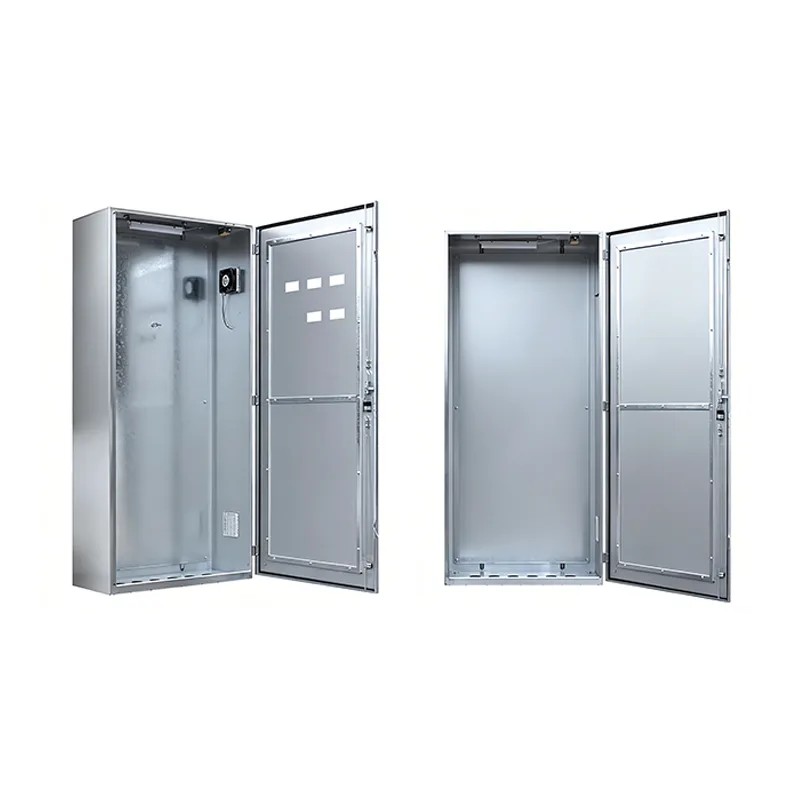

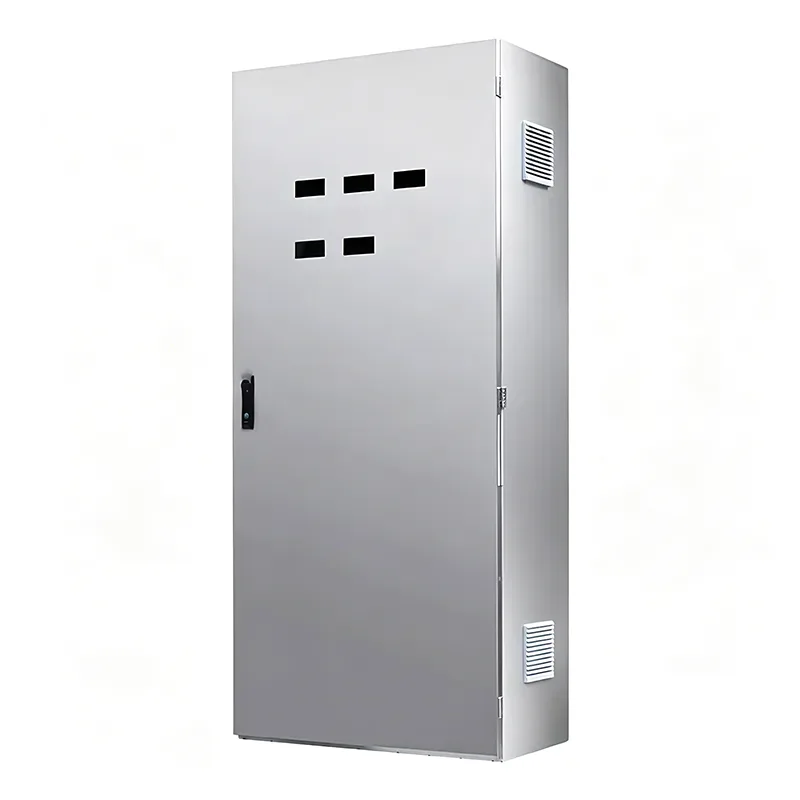

Anti Corrosion Outdoor Power Cabinet Enclosure

Shangming is a reliable manufacturer and supplier of Anti Corrosion Outdoor Power Cabinet Enclosures. This product not only has the waterproof, dustproof, and sunproof capabilities of conventional outdoor power cabinets, but also features upgrades in materials and protection levels, allowing for longer outdoor use and handling of more severe environments.

How Does the Anti Corrosion Outdoor Power Cabinet Enclosure Provide Protection?

The protection mechanism of a corrosion-resistant power distribution cabinet is not simply a matter of material selection, but requires the synergistic effect of materials, structure, and manufacturing processes. Each step in material selection, design, and manufacturing process is crucial. Shangming provides quality assurance, ensuring it does not affect actual use.

1. Chemical Protection

Material protection is the first line of defense against corrosion. For this product, we use SUS304 or SUS316L materials, which can be selected according to your needs.

The chromium contained in the stainless steel surface spontaneously forms a dense, chromium-rich oxide film. Even if the casing is physically scratched, this film can quickly self-repair in the air, preventing oxygen atoms from penetrating and corroding.

2. Multi-layer Coating Process

Shangming employs a double-protective coating process. After rigorous pickling, phosphating, or ceramic coating treatments, oil stains are removed and the micro-roughness of the cabinet surface is increased, enhancing adhesion.

Furthermore, we use a zinc-rich primer to provide electrochemical protection.

3. Condensation Prevention

Outdoors, internal condensation caused by temperature differences is more detrimental than external rainwater.

We use inner and outer layers of panels with an air gap in between, similar to a thermos, significantly reducing heat radiation from direct sunlight and mitigating internal temperature fluctuations, thus reducing condensation at its source.

The ventilation louvers ensure airflow while using gravity to allow rainwater or water mist to flow directly out along the walls, preventing it from entering the electrical area.

The top of the distribution cabinet features a significant drainage slope with a protruding edge, preventing rainwater from accumulating on the top cover and causing long-term water buildup that could lead to aging of the sealing strips.

4. Environmental Regulation and Dynamic Control

You can use active or passive devices to keep the cabinet interior in a non-corrosive environment. A temperature-controlled heater can be selected; when the ambient humidity exceeds 75% or the temperature drops suddenly, the heater activates, raising the internal air temperature to ensure the dew point temperature is always higher than the surface temperature, preventing condensation.

The balancing valve can automatically adjust the pressure difference between the inside and outside of the cabinet to prevent external moisture from being drawn into the sealing strip due to the suction effect caused by temperature difference.

Application Scenarios

To ensure reliable operation in extreme environments without building shelter, Shangming employs a 7-step quality inspection process to provide stable and reliable products to global buyers. Currently, the main applications using this corrosion-resistant outdoor power cabinet casing are as follows; please contact us for specific customization needs.

I. New Energy and Power Infrastructure

1. Photovoltaic Power Stations

Suitable for: Inverter AC distribution cabinets, low-voltage substation rooms, combiner monitoring boxes

Environmental Challenges: Sun and rain exposure, large diurnal temperature variations, dust storms, high salt spray in coastal areas

Why Corrosion Resistance is Essential: Ordinary carbon steel cabinets corrode within 2-3 years, leading to grounding failure, short circuits, and shutdowns. Corrosion-resistant cabinets (selected using 304 stainless steel + IP65) can operate stably for over 15 years, guaranteeing a 25-year power station lifespan.

2. Wind Farms

Suitable for: External auxiliary power supply cabinets for wind turbine towers, transformer substation control boxes, and wind measurement tower power distribution units.

Environmental Challenges: Strong winds, heavy rain, coastal salt spray (Cl⁻ concentration >1mg/m³), and low-temperature freeze-thaw cycles.

Key Requirements: We recommend using 316 stainless steel + IP66 for the design to resist marine atmospheric corrosion.

The distribution cabinet can be equipped with a built-in heater to prevent condensation and damage to components during winter.

3. Outdoor Containerized Energy Storage Systems

Suitable for: PCS distribution cabinets, battery cluster monitoring power supply boxes, and fire alarm control cabinets.

Special Requirements: IP54+ protection rating to prevent dust ingress affecting heat dissipation. Strong and weak current isolation to avoid communication interference.

II. Municipal and Transportation Infrastructure

1. Urban Roads and Intelligent Transportation

Suitable for: Traffic signal control boxes, street light centralized controllers, and electronic police distribution cabinets.

Environmental Challenges: Sulfur-containing vehicle exhaust, rain immersion, human-caused collisions, and high summer temperatures.

Solutions: The cabinet needs to be coated with outdoor polyester paint, which is cost-effective and resistant to urban atmospheric corrosion.

We recommend an IP65 protection rating to prevent backflow from heavy rain.

We also suggest a wall-mounted design instead of a floor-standing one to save sidewalk space.

2. Rail Transit

Suitable for: Section lighting distribution boxes, tunnel ventilation control cabinets, signal equipment power supply boxes

Strict requirements: Moisture resistance (tunnel humidity is often >90%); vibration resistance; compliance with railway industry standards.

Recommended configuration: 304 stainless steel + IP55 + reinforced frame.

III. Water Treatment and Environmental Protection Engineering

1. Sewage Treatment Plants and Pumping Stations

Suitable for: Outdoor water pump control cabinets, chemical dosing system power supply boxes, bar screen control boxes

Corrosion sources: Hydrogen sulfide (H₂S), ammonia (NH₃), high humidity, chemical splashes

Necessity of corrosion prevention:

H₂S combines with moisture to form a weak acid, accelerating the corrosion of carbon steel. Therefore, stainless steel is required to prevent control system malfunctions and overflow accidents.

2. Seawater Desalination and Harbor Engineering

Suitable for: Water intake pump room control cabinets, dock crane power supply boxes, navigation light distribution units

Extreme Environments: Long-term salt spray environment, wave splash, strong ultraviolet radiation

Preferred Material: 316 stainless steel, with pitting corrosion resistance far exceeding 304.

IV. Industrial and Special Sites

1. Chemical and Electroplating Industrial Parks

Suitable for: Exhaust gas treatment fan control cabinets, tank area liquid level monitoring boxes, acid and alkali pump distribution cabinets

Corrosive Media: Chlorine, sulfuric acid mist, chromic acid vapor, strong alkaline droplets

Safety Requirements: Specific solutions need to be customized according to your specific needs. You can contact Shangming immediately for communication and technical support. However, generally speaking, chemical industry applications require cabinet materials that can withstand pH 1–13 and are not easily reactive with chemicals.

2. Agriculture and Biomass Energy

Suitable for: Biogas power generation control cabinets, livestock farm environmental monitoring boxes, irrigation pump station distribution cabinets

Special corrosion sources: Ammonia (NH₃), methane (CH₄), organic acid vapors

Solution: 304 stainless steel + positive pressure ventilation (optional) to prevent the accumulation of corrosive gases inside.

Maintenance Precautions

I. Daily Operation Inspection

Monthly operation inspections should be conducted, observing the appearance and coating condition. Check the cabinet surface for blistering, cracks, paint peeling, or rust spots, paying particular attention to easily corroded areas such as door edges, welds, and bolt holes.

If coating damage is found, it should be repaired promptly.

After inspecting the cabinet, also check the door frame sealing strips for aging, hardening, or detachment. Ensure there are no noticeable gaps when the door is closed, and that door locks and hinges open and close smoothly without jamming.

II. Regular Maintenance

As a manufacturer of Anti Corrosion Outdoor Power Cabinet Enclosures, Shangming recommends cleaning and protection every 3–6 months. Use a neutral detergent to remove salt, dust, and chemical deposits. Do not use strong acids, strong alkalis, or metal brushes for cleaning.

If the project is located in a coastal or industrial area, the cleaning frequency should be increased accordingly.

Maintenance includes inspecting bolts, hinges, and locks for looseness or corrosion. If rust is found, replace them. The grounding terminal must maintain good contact to prevent grounding failure.Check that the cable entry and exit port seals are intact. Waterproof joints must be secure and free from aging. If heaters or dehumidifiers are installed, confirm their proper functioning.

III. Key Maintenance in Harsh Environments

In high-salt-spray environments, regularly rinse the cabinet surface to remove salt, paying particular attention to areas prone to salt accumulation such as door edges and bases. Maintenance cycles may be shortened depending on the situation.

In chemical and highly corrosive environments, regularly check the coating's chemical resistance for degradation. If coating failure is found, perform localized or overall anti-corrosion treatment. Never replace original components with non-corrosion-resistant materials.

IV. Long-Term Operation Recommendations

Please note that the distribution cabinet cannot be modified without authorization. Drilling holes yourself is not recommended as it may damage the original anti-corrosion structure. If modifications are necessary, please contact Shangming's after-sales service team for professional technical support.

When performing maintenance, we recommend establishing a maintenance log to record inspection times, problems found, and handling methods. This helps in assessing the cabinet's lifespan and anti-corrosion condition.
